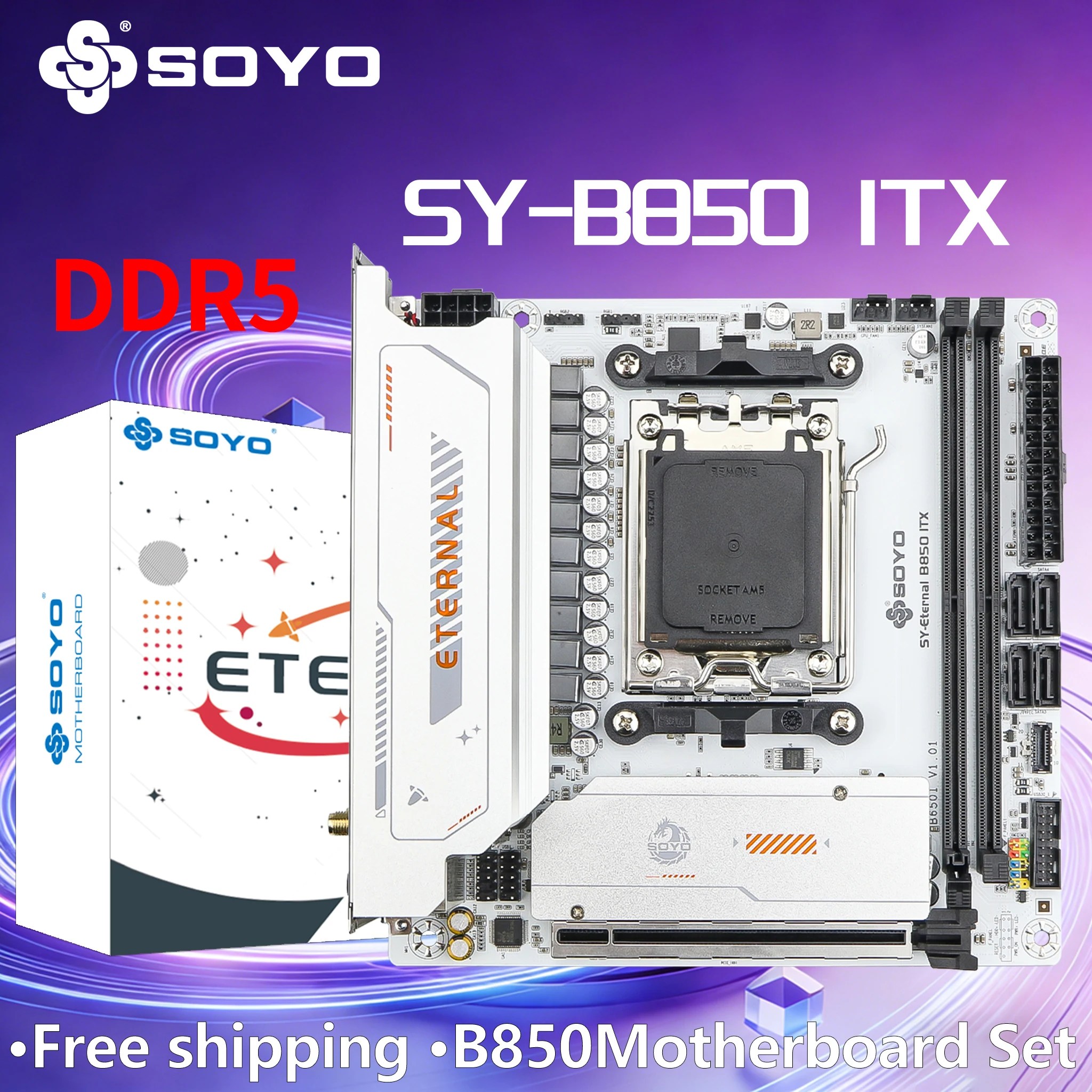

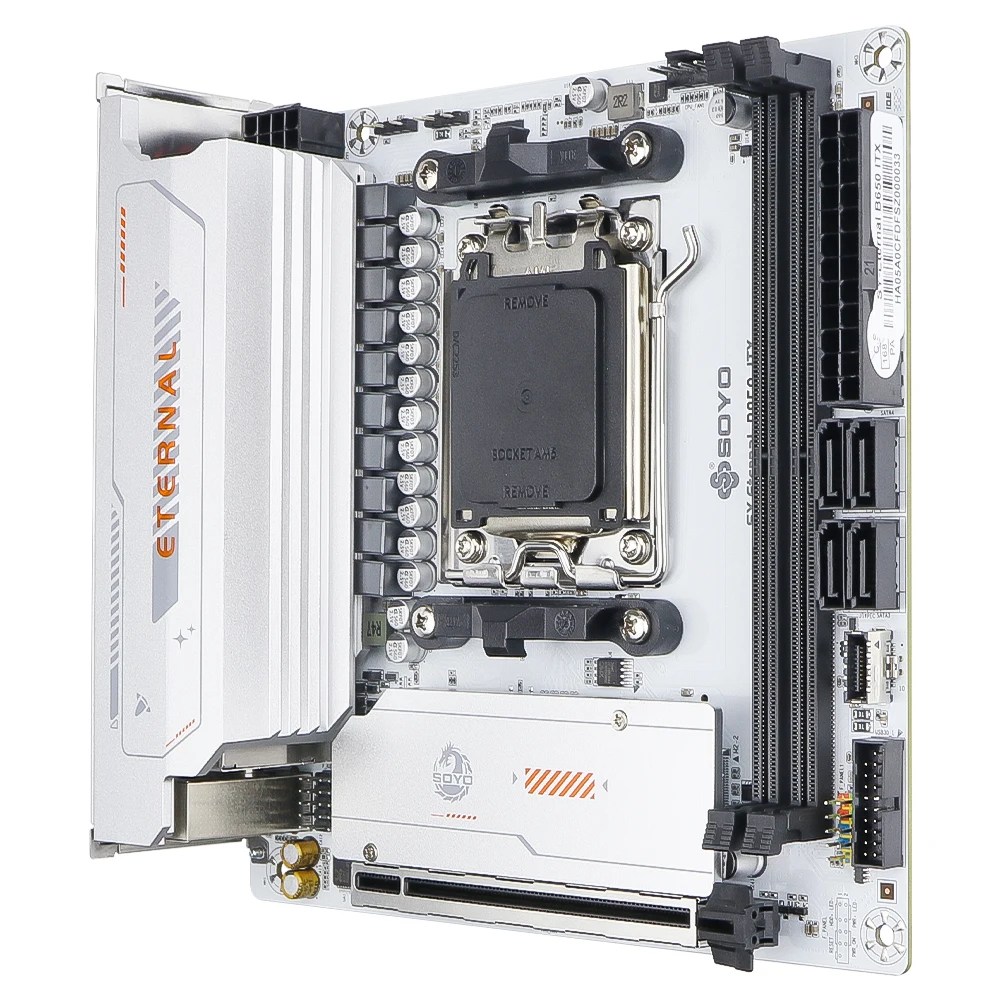

SOYO B850ITX AMD Motherboard AMD Ryzen AM5 DDR5 Supports CPU 8000 9000 Processors Pcie5.0x16 Pcie4.0x4 M.2 ARGB WIFI6 DHMI DP
$211.63
Description
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,WiFi,COM,Displayport,HDMI 2.0
Battery Included: no
Brand Name: SOYO
Chipset: AMD
Chipset Manufacturer: AMD
Choice: yes
High-concerned chemical: none
Material: Metal
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 2
Number of PCI: 1
Number of SATA Ports: 4
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,RGB Header,USB 3.0 Connector,System Panel(s) (Chassis intrusion header is inbuilt)
Onboard LAN: WIFI 6 (AX),Bluetooth v5.1
Origin: Mainland China
PCI – E standards: PCI-E 5.0
Package: Yes
Ports: Ethernet
Processor compatibility: AMD Ryzen 7000 Series-R3,AMD Ryzen 7000 Series-R5,AMD Ryzen 7000 Series-R7,AMD Ryzen 7000 Series-R9
RAID Supported: Yes
Socket Type: Socket AM5
Special Features: Cooling Armor
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR5
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Rendering,MaxCompute
With CPU: No
This is our official website for you to check full product details.
High-Performance CPU Compatibility
Supports AMD Ryzen 7000 Series-R3 processors, ideal for high-end gaming and overclocking.
Expandable Storage Options
Offers 4 SATA ports and dual M.2 slots, providing ample storage solutions for your data needs.
Robust Cooling System
Featuring Cooling Armor for efficient heat dissipation, ensuring stable performance under load.
Future-Ready Technology
WIFI6 connectivity offers seamless online experiences, while USB 2.0 ports cater to legacy devices.
Advanced Connectivity
Equipped with PCIe5.0x16 and PCIe4.0x4 for ultra-fast data transfer and support for multiple M.2 SSDs.
>>Please pay attention to the bundle options before purchasing. Buy a single motherboard. We do not send CPU and memory. Please check careful
Differences Between Packages:
Motherboards: 1*永恒-B850 ITX motherboard
> > CPU parameters:AMD AM5 Ruilong 7000/8000/9000 Series Desktop Processors
> > memory parameters:2*DDR5, supporting 4800~6000+MHz frequency (synchronous overclocking), with a maximum capacity of 64G.
> > hard disk interface:1*M.2 interface (supporting PCIE5.0 x4 speed), 1*M.2 interface (supporting PCIE4.0 x4 speed on the back), 4*SATA3.0 interface.
> > USB interface:It always supports 6*USB2.0 interface, 5*USB3.2 interface and 2*TYPC interface (up to 10gbps, transmission only).
> > display interface:1*HDMI (supporting 2.0), 1*DP (supporting 1.4)
> > expansion slot:1*PCIE-16X (supporting 5.0×16)
> > audio parameters:Realtek ALC897 series high definition audio independent sound card is adopted.
> > NIC interface:1*Realtek 8125 2.5G network card, 1*M.2 WIFI interface (pcie protocol).
> > power supply interface:1*24PIN ATXPWR 1*8PIN ATX12V
🔥【Rear Panel Interfaces】
1: USB2.0
2: CMOS Reset Button
3: HDMI / DP Port
4: USB3.2 (Up to 10Gbps)
5: USB3.2 / TYPE-C (Up to 10Gbps)
6: LAN Port / USB2.0
7: M.2 WIFI Slot
8: Audio Jacks
✨【Onboard Front Headers】
1* F_AUDIO Front Audio Header
1* F_USB (Expandable to 2x USB2.0 Ports)
1* USB3.2 Header (Expandable to 2x USB3.2 Ports, up to 5Gbps)
1* JTYPEC Header (Supports 5Gbps)
2* ARGB Headers
1* CPU_FAN Fan Header
1* SYS_FAN System Fan Header
> >Product Driver Download Website: https://www.soyocn.net/down/zbdrv/AMD/
> >BIOS download URL:
https://drive.google.com/drive/folders/1RkLdkKJUAH-wJA3SAQaXTNC4ogUPhOnL?usp=sharing
Note:
(1) Please allow 1-3mm differs due to manual measurement.
(2) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(3) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
8850ITX WIFI AMD RYZEN
Enhanced power supply
10+1 phases 50A DR.MOSFully running R7 7800X3D
high-speed memory
2*DDR5 Support over clocking4800/5200/5600/6000+Mhz
High-speed internet
2.5G network card&WIFI6 Unlimited connec-tion
10+1 phasePower supply design
TDP105W(can be unlocked to 180W)Runs at full power of R77800X3D
ITX board size:170*170mm
AMD AM5 Ryzen7000/8000/9000 Series CPU
Rear 2*USB2.0+HDMI/DP+2*USB3.0+USB3.2/Type-CRJ45 LAN/USB2.0+M.2 WIFI+AUDIO PORT
Front 1*F AUDIO+2*USB2.0+2*USB3.2+2*ARGB1*CPU FAN+1*SYS FAN
DDR5 memoryDual channel 2*DIMM,supports overclocking
Supports 4800~6000+ MHzSupports a maximum capacityof 64GB
Realtek ALC897 sound cardRealtek 8125 2.5G network card
WIFI6 wireless network card,supports Bluetooth 5.2
The ETERNAL series is newly launched, with a newspace-themed paint job for eSports
It uses 10+1 phase power supply, and each core phaseis equipped with 50ADR.MOS, which can release theperformance stably, be efficient and powerful, and beextremely competitive!
Equipped with 2*DIMM high-speed DDR5 memory slots, supports du-al-channel memory technology, supports memory4800/5200/5600/6000+Mhz, and has a faster response speed, making iteasy to take the initiative on the battlefield!
*Data source: SoYo Lab, achieved with Ryzeng000 series processors. Overdlocking effect depends onmany factors, please refer to the actual effect.
1 x M.2 Interface (supports PCle 5.0 x4 speed),.1 x M.2 Interface (supports PCle4.0 x4 speed on the back) Full-speed interface, Supports NyMe hard drives
TYPE-C Transmission High Speed Peripheral Connection
Type-E Slot Supports The ExpanslonOf One 5Gbps Type-C Interface
Equipped With a Realtek 8125 2.5G Wired Network Card, En-abling instant internet access, reducing game latency For Moretimely operations; meanwhile, it is also equipped with a RealtekRTL8852BE WiFi 6 dual-band (2.4GHz/5GHz) wireless networkcard, supporting Bluetooth 5.2. This delivers faster and morestable WiFi 6 for seamless wireless connectivity.
