Description

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,VGA (D-Sub),HDMI 2.0

Battery Included: no

Brand Name: SOYO

Chipset: AMD B550

Chipset Manufacturer: AMD

Choice: yes

High-concerned chemical: none

Material: Plastic

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 1

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,Chassis(SYS) Fan Connector(s),System Panel(s) (Chassis intrusion header is inbuilt)

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 4.0

Package: Yes

Ports: Ethernet

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3

RAID Supported: Yes

Socket Type: AM4

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.2 Gen1

Supports M.2 SSD: 2280

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Production,Video Rendering,others

With CPU: No

> >Product Driver Download Website: https://www.soyocn.net/down/zbdrv/AMD/

● DDR4*2 dual channel: support 2133/2400/2666/3000/3200/3600 MHz (OC+), support XMP, and support 64G(32G*2) at most.

● 2* M.2 slot: (CN2: PCIE4.0 X4/SATA 3.0)(CN3:PCIE3.0 X4）； 4*SATA 3.0 interface1*PCIE X16 slot (PCIe 4.0×16); 1*PCIE X1 slot (PCIe 3.0×1); 1*WIFI slot (PCIe protocol)IO interface: 4*USB3.2 GEN1(5Gbps), 4*USB2.0.

● Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended);1 set of USB3.0 pins (2 USB3.0 ports can be expanded); 5Gbps1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin+ 1*3Pin SYS fan; 1*4Pin Speak pin; 2*5Pin COM pin; 2 * 5pinddebug pin; 3*5V 3PIN ARGB pin

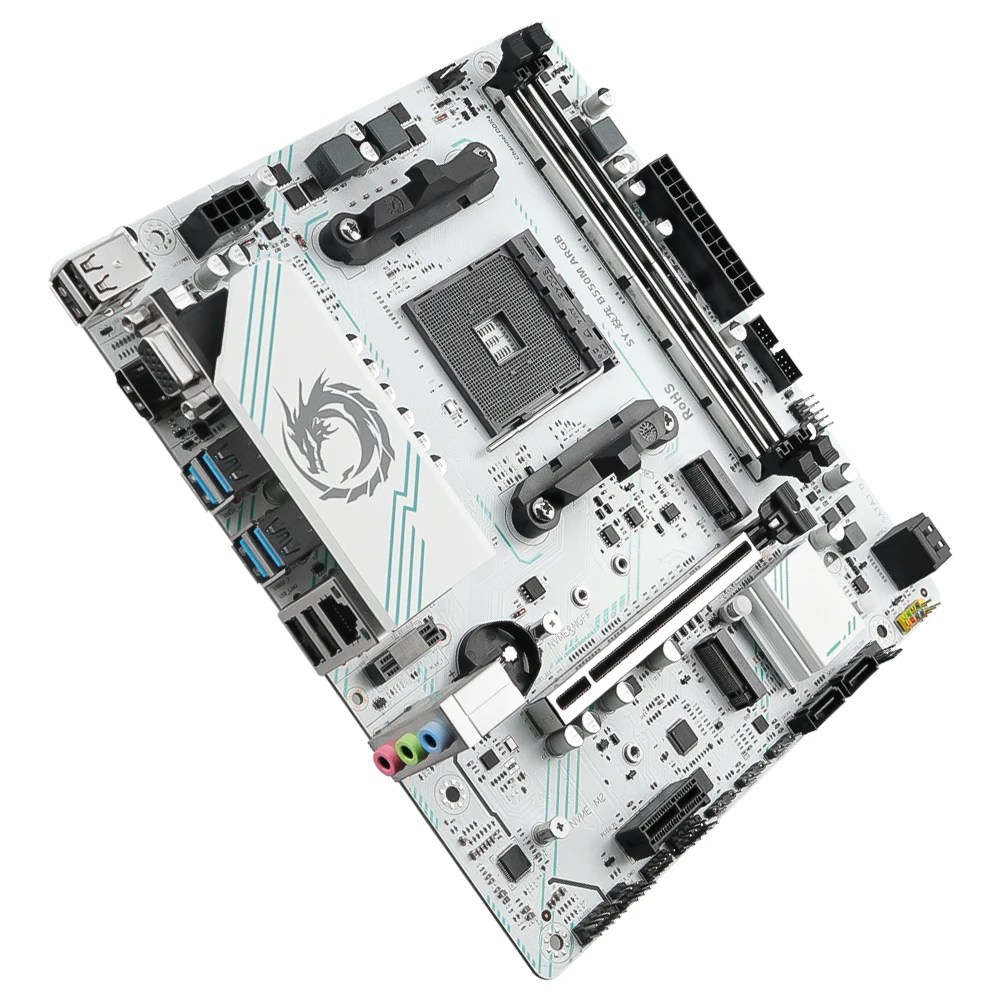

● Note：The CR2032battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
