Description

SPECIFICATIONS

Application: Desktop

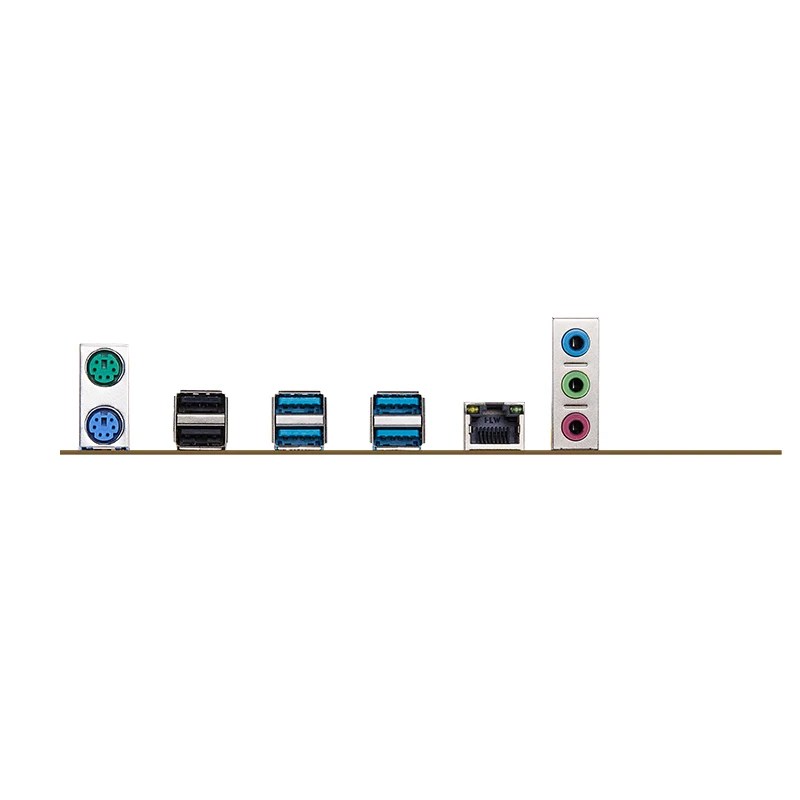

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: QIYIDA

Chipset: Intel X99

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: none

Maximum Ram Capacity: 128 GB

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Xeon,Intel Others,Intel Xeon E Series

RAID Supported: Yes

Socket Type: LGA 2011-3

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Industrial Computer,Workstation,Server,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC

With CPU: No

Note ：

that the new old models are sent randomly, the motherboard batches are different, and the appearance may be different.

Mind please don't buy!

Due to different production batch, motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc.  Our aim is to gradually make it more powerful.

We will not make any further notice..

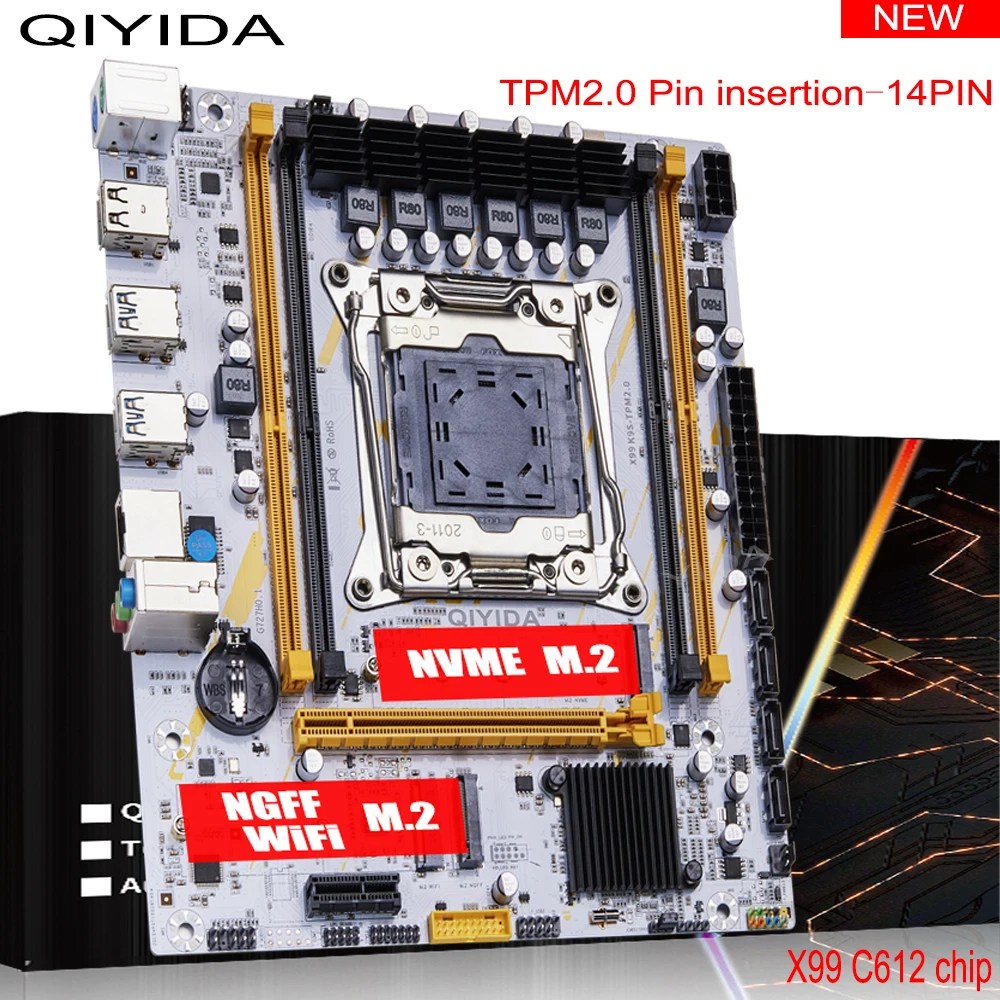

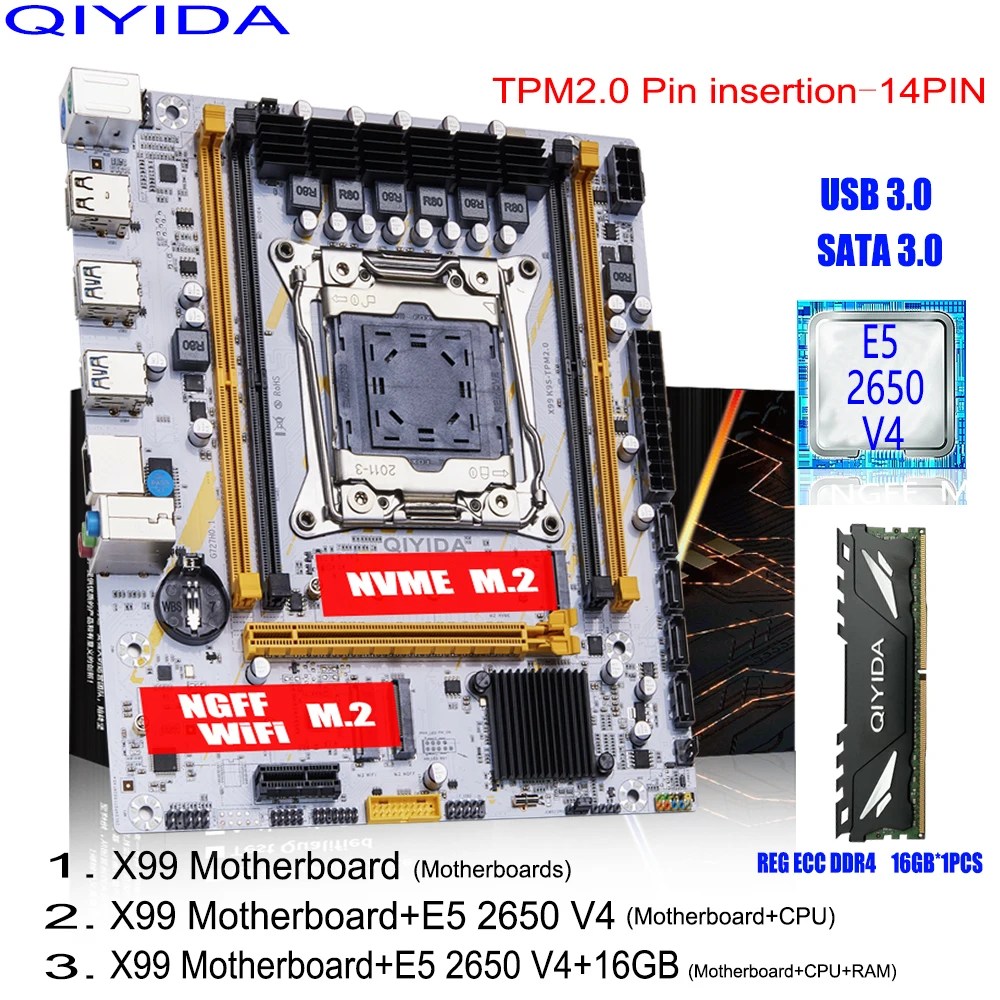

Model:QIYIDA LGA2011-3-E5D4

Condition: Full new

Main chipset: B85/H81/Q87,86etc., random delivery. thank you. If you can't accept it, please don't buy it. Buying means

CPU socket: LGA 2011-3

Structure: M-ATX

VGA socket: PCI-E X 16

Power port: 24Pin+8pin

CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)

Memory socket: 4* DDR4

Max memory capacity: 4* 16G DDR4 2133/2400MHz/2666MHz/3200MHz

Memory type supported: non-ecc/reg ecc/ecc

Integrated video card: No

Support NVME/NGFF M.2. Note that they need to switch the jumpers on the motherboard

Motherboard dimension: 21.5cm*18.6cm

The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°). The actual temperature can be tested with a body thermometer, and the normal use does not exceed 50°.

The black ram slot of motherboard can't works alone.The memory needs to be inserted into the yellow main slot first.
