Description

SPECIFICATIONS

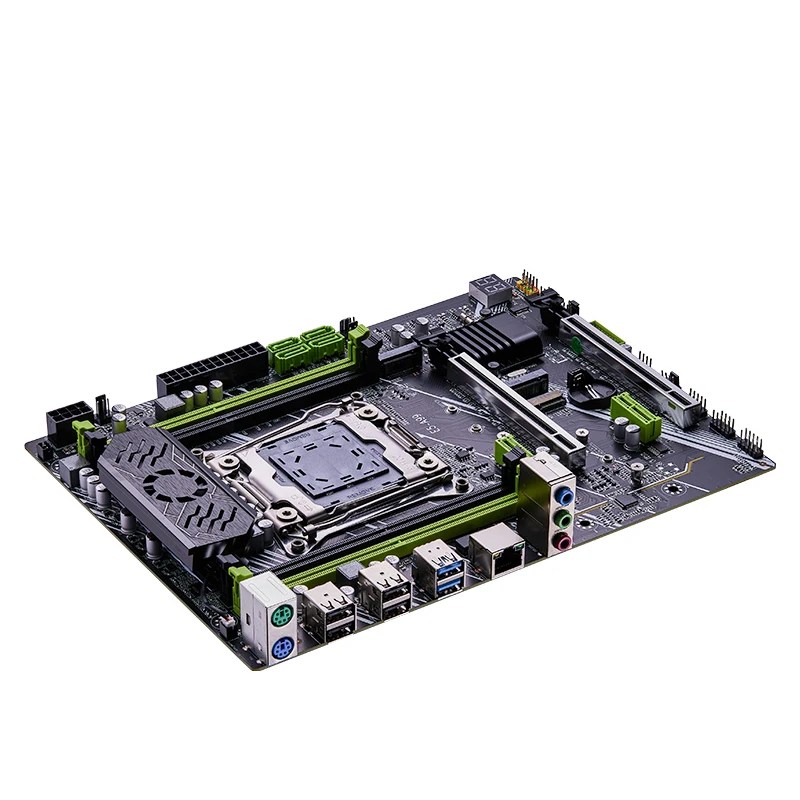

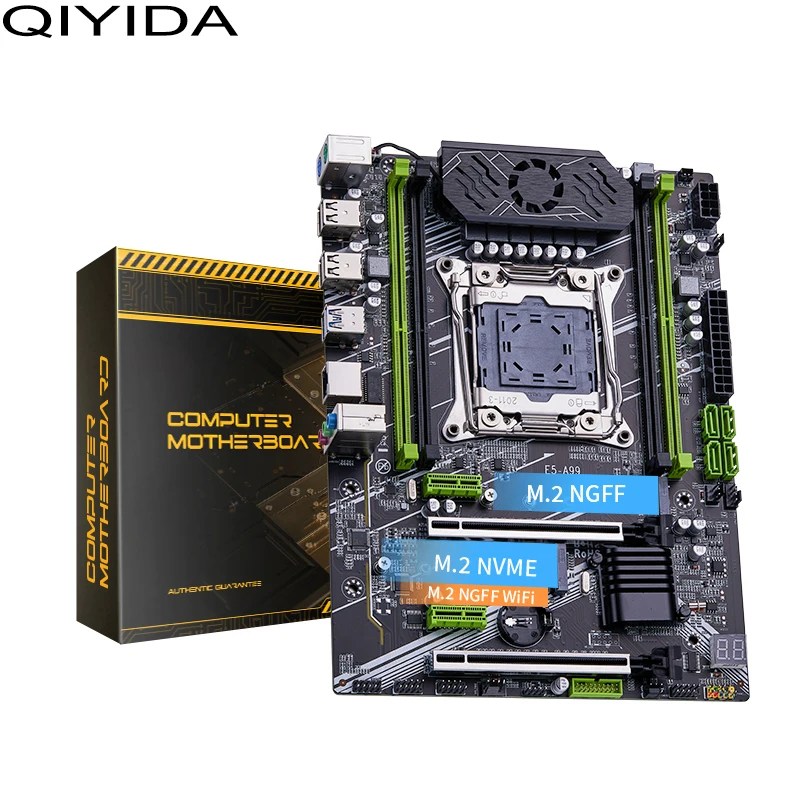

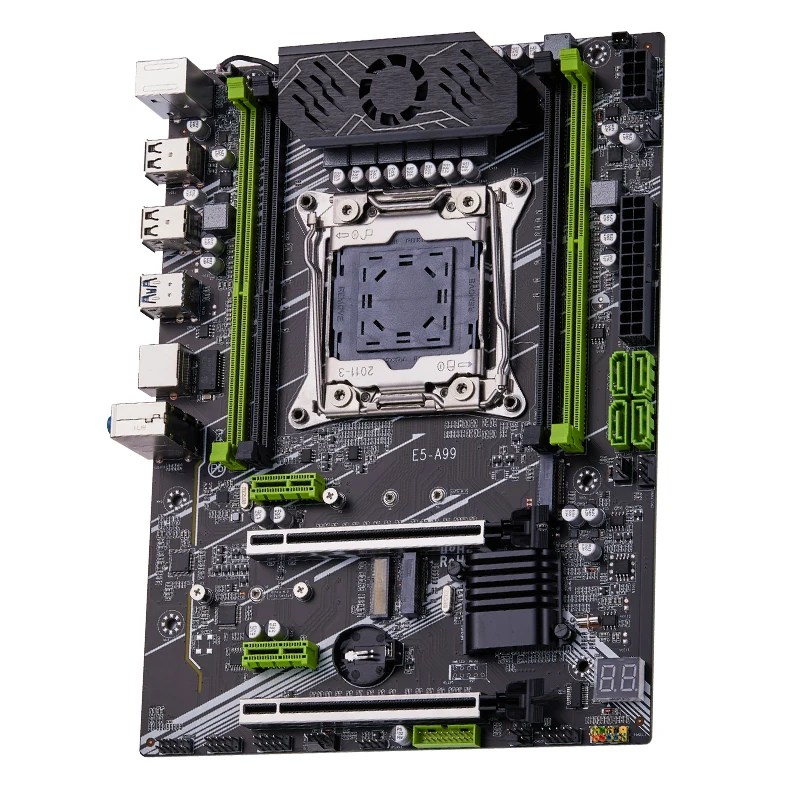

Name: QIYIDA X99 Motherboard LGA 2011-3 E5 A99 Supports 4 Channels Xeon E5 full range of CPU DDR4 RAM memory USB3.0 ATX Server
Brand: BITujjar
SKU: db9tkpignrvg00cla7jg
Price: 91.87 USD
Availability: InStock

Application: Desktop,Laptop,Server,Workstation,Mining,Industrial Computer

Back I/O Ports: 1x RJ45,3 x Audio Jacks,4 x USB 2.0,PS/2

Battery Included: no

Brand Name: QIYIDA

Chipset: Intel B85

Chipset Manufacturer: Intel

Choice: yes

Form Factor: ATX

High-concerned chemical: none

Maximum Ram Capacity: 128 GB

Memory channel: Four

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 4

Number of PCIe x 1: 2

Number of PCIe x 16: 2

Number of SATA Ports: 4

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Xeon,Intel Others,Intel Xeon E Series

RAID Supported: no

Socket Type: LGA 2011-3

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Design,Video Production,Industrial Computer,Workstation,Server,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC

With CPU: No

Specifications:

Model：X99 Motherboard

CPU Socket：Support Intele 2011-3 Processors

Memory Socket：4*DDR4 Memory Socke

Memory Standard ：Support channels DDR4 3200/2666/2400/2133/1866 MHz

CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)

Motherboard dimension: 258MM*190MM

Power interface：24pin+8pin

Main chipset: B85/H81/Q87,86etc., random delivery. thank you. If you can't accept it, please don't buy it. Buying means that you agree to the terms.

Note:

1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .

2:Please allow 1-3mm differs due to manual measurement.

3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

5:We show photos of motherboard, pictures are for reference only, subject to our available products.

6.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！

Note：

Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!
