Description

SPECIFICATIONS

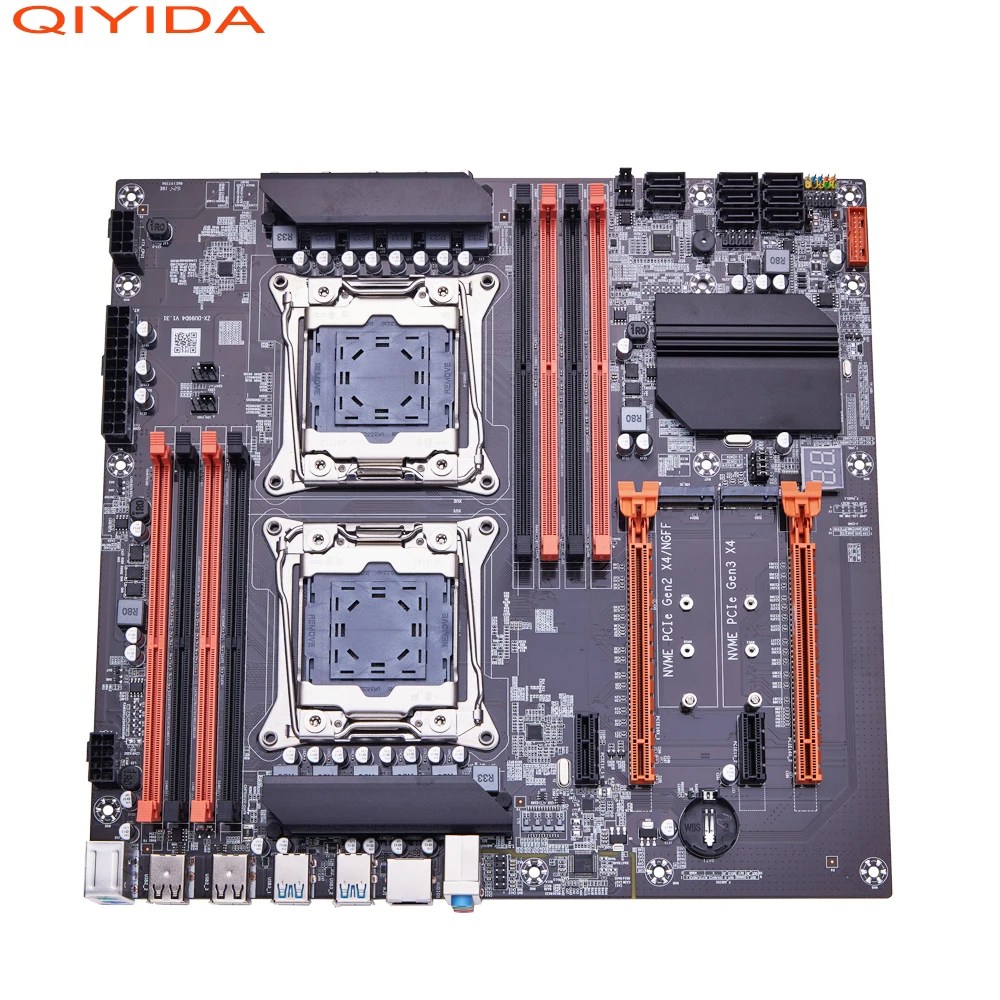

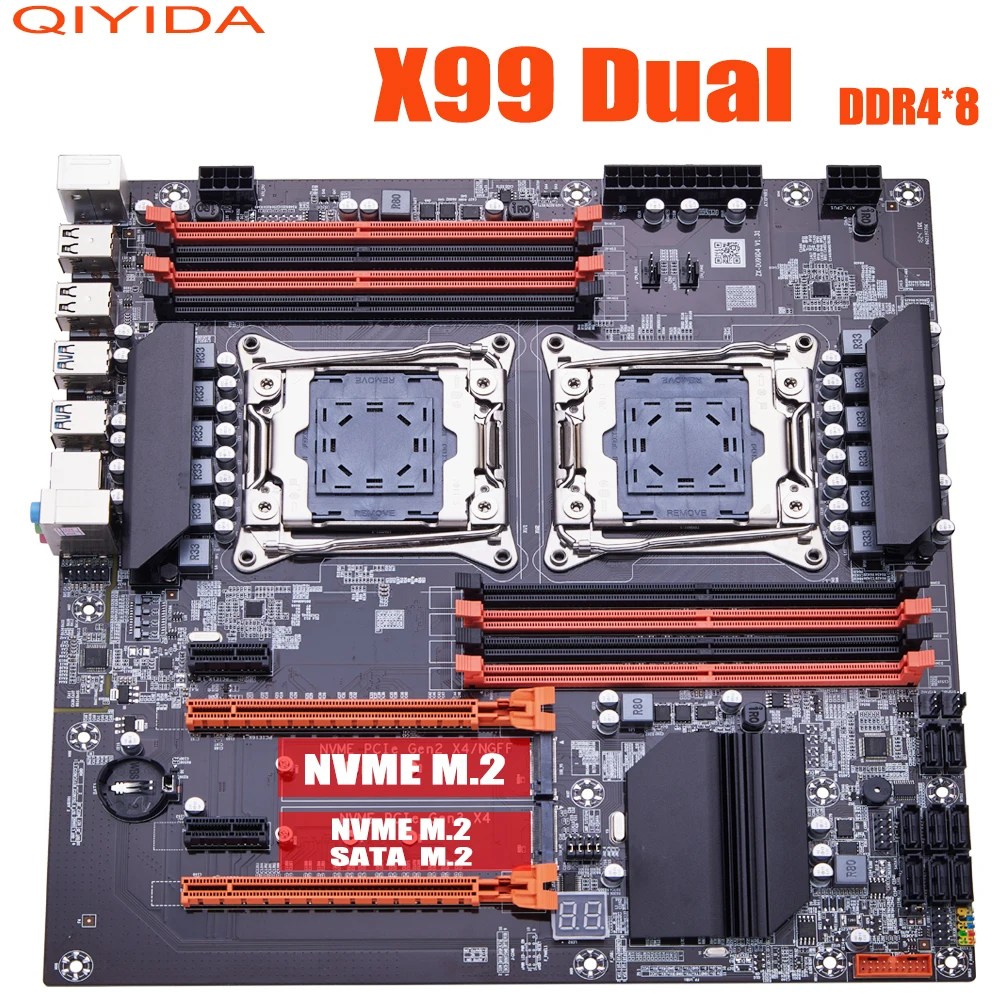

Name: QIYIDA X99 Motherboard Dual X99 C612 Chip Supports LGA 2011-3 CPU DDR4 RAM NVME NGFF M.2 USB3.0 SATA3.0 PCI16X
Brand: BITujjar
SKU: db9tkpdnspsg008rckcg
Price: 104.94 USD
Availability: InStock

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: QIYIDA

Chipset: Intel X99

Chipset Manufacturer: Intel

Choice: yes

Form Factor: CeB,E-ATX

High-concerned chemical: none

Launch Date: 2013

Maximum Ram Capacity: 256GB

Memory channel: Four

Number of M.2: 2

Number of PCI: 4

Number of PCIe x 1: 2

Number of PCIe x 16: 2

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Xeon,Intel Others,Intel Xeon E Series

RAID Supported: Yes

Socket Type: LGA 2011-3

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Industrial Computer,Workstation,Server,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC

With CPU: No

Installation precautions:

1. Dual 8PIN (4+4PIN) processor power cables are required, and adapter cables cannot be used for power connection.

2. The processor needs to be inserted into the first slot on the left first priority.

3. The memory needs to prioritize the orange main slot on the left side of the slot.

STATEMENTS OF QIYIDA FACTORY OUTLET STORE

Engineering version of processor. Es, QS is not supported

Due to different batches of productions, there might be some difference between the pictures you've seen and the motherboard you get, for example, retail boxes, colors of DIMM slots, SATA ports, PCI or PCI-E Slots and other ports, are subject to change without prior notice. One thing for sure is that we never compromise on the quality of our products.

Motherboard battery will be removed before shipment as CN post or customs has laid an embargo on battery

All products are tested before shipping?

Yes, Shenzhen Factory Outlet Store

has 3 technical teams for testing every working days, so we can 100% guarantee that all our products are working good before being sent out from our warehouse

Memory slot marked orange color is the main slot, and black color is the sub slot, which must be inserted into the main slot first

Feature:

100% brand new and high quality!

Support REG ECC server memory.

Support M.2 NVME/M.2 SATA SSD.

High compatibility for a higher experience.

All solid capacitors, fine workmanship, professional stability.

The power socket has an 2X8-pin, 24-pin power connector.

Specification:

Condition: Full new

CPU socket: LGA 2011-3(XEON E5 V3 ,V4 CPU)

Support: same model CPU combination OR different model but same core number combination

Not supported: Mixed use of different core numbers, for example: 4 cores + 6 cores cannot be mixed, 6 cores + 8 cores cannot be mixed

Structure:E-ATX

Memory socket: 8* DDR4

Max memory supported: 8*32G DDR4

Memory type:3200/2666/2400/2133MHz

Memory type supported: non-ecc/reg ecc/ecc(The server ram can't work with the desktop ram, it has the compability problem.)

Expansion slot:

2XM.2 Interface

Integrated video card: No

Motherboard dimension: 281*295mm

Motherboard weight(including package): 1.5kg or so

Note: 1:The memory slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.

2:Please allow 1-3mm differs due to manual measurement.

3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)

5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
