Description

SPECIFICATIONS

Name: QIYIDA X99 H9S Motherboard Set Kit With LGA2011-3 Xeon E5 2630 V4 CPU DDR4 16GB memory NVME M.2 TPM 2.0 Interface SATA3
Brand: BITujjar
SKU: db9tkql8ire000fl0cng
Availability: InStock

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: QIYIDA

Chipset: Intel X99

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: none

Maximum Ram Capacity: 128 GB

Memory channel: Four

Number Of Memory Slots: 4

Number of M.2: 2

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Xeon

RAID Supported: Yes

Socket Type: LGA 2011-3

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Industrial Computer,Workstation,Server,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC

With CPU: Yes

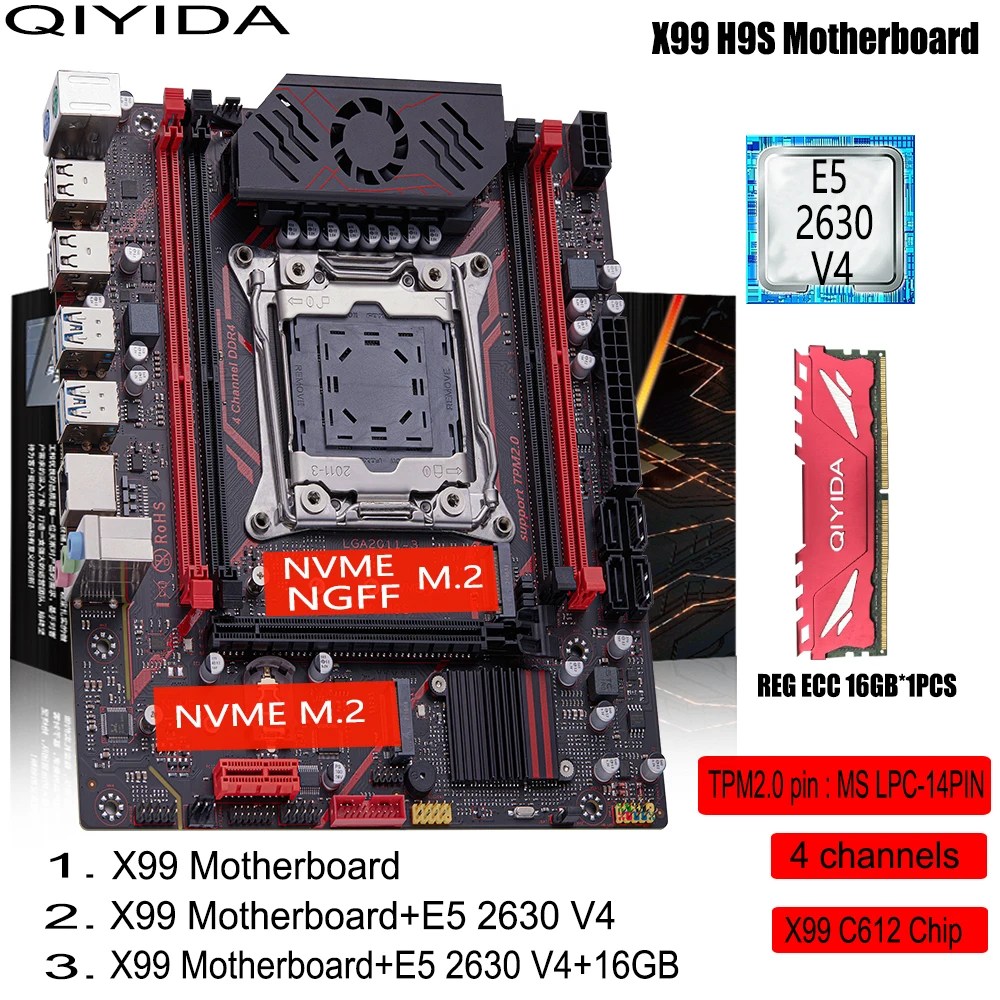

You can choose from three specifications: motherboard or motherboard+CPU or motherboard+CPU+memory

1. (motherboard x1)

2. (motherboard x1+CPU x1)

3. (motherboard x1+CPU x1+16GB memory x1)

Please choose according to your needs

CPU:

Processor Series: Intel Xeon

Model number: E5 2630 V4

Processor Speed: 2.2GHz

Processor Socket: 2011-3

stepping: SR2R7

The number of CPU cores: 10

The number of threads: 20

L3 cache size (MB): 25MB

Wattage: 85Watt

Memory:

Chip: SEC / HY/ MIC and others (ship at random)

Type: ECC REG (server memory)

Frequency: DDR4

Capacity: 16GB (1PCS*8GB)

Power interface：24pin+8pin

Note:

1:The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .

2:Please allow 1-3mm differs due to manual measurement.

3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

4:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

5:We show photos of motherboard, pictures are for reference only, subject to our available products.

6.Please use the specifications provided in the instructions for TPM 2.0 specifications. Inserting the wrong model of TPM may cause it to fail to start. Please purchase the TPM specifications specified in the instructions image

Feature:

100% brand new and high quality!

Support REG ECC server memory/desktop memory Note that server memory and desktop memory. The two types of memory cannot be mixed together.

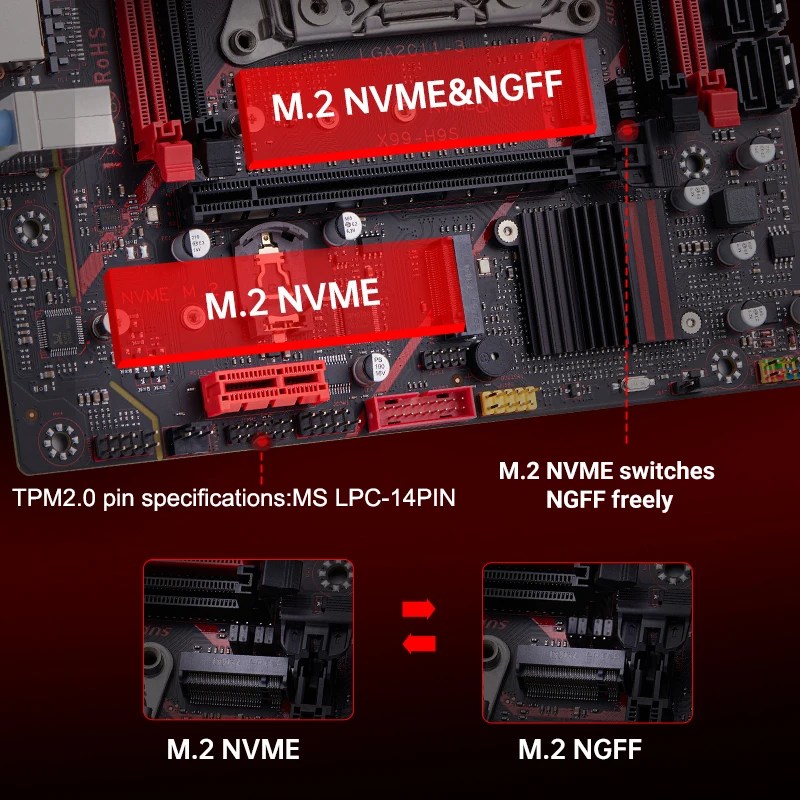

Support M.2 NVME/NGFF SSD.

High compatibility for a higher experience.

All solid capacitors, fine workmanship, professional stability.

The power socket has an 8-pin, 24-pin power connector.

Motherboard dimension: 215mm*190mm.
