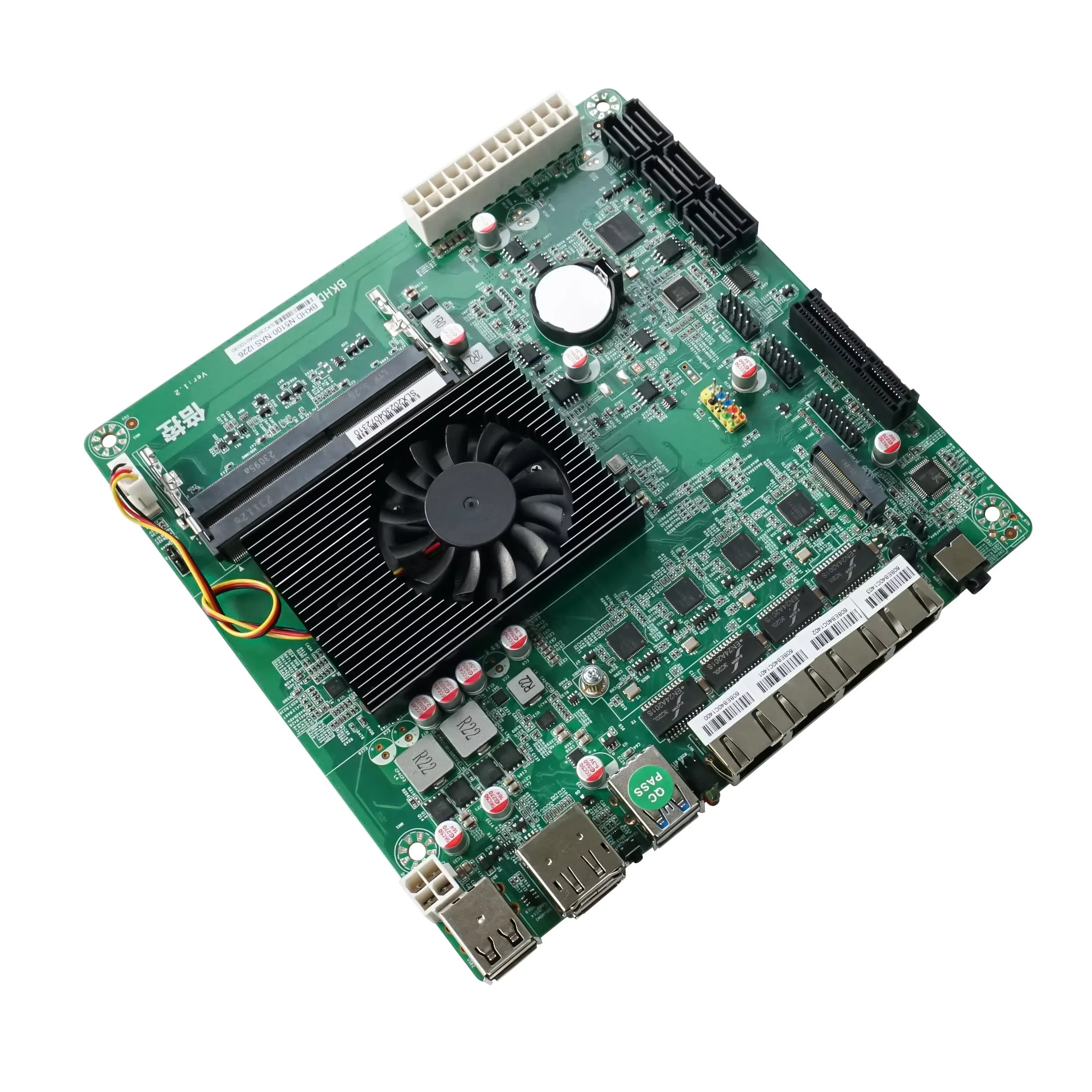

Mini ITX NAS Board N150/N5105 DDR5/DDR4 6 SATA3.0 2.5G I226 Soft Router Server
Mini ITX NAS Board N150/N5105 DDR5/DDR4 6 SATA3.0 2.5G I226 Soft Router Server - Image 2
Mini ITX NAS Board N150/N5105 DDR5/DDR4 6 SATA3.0 2.5G I226 Soft Router Server - Image 3
Mini ITX NAS Board N150/N5105 DDR5/DDR4 6 SATA3.0 2.5G I226 Soft Router Server - Image 4
Mini ITX NAS Board N150/N5105 DDR5/DDR4 6 SATA3.0 2.5G I226 Soft Router Server - Image 5
Mini ITX NAS Board N150/N5105 DDR5/DDR4 6 SATA3.0 2.5G I226 Soft Router Server - Image 6

Mini ITX NAS Board N150/N5105 DDR5/DDR4 6 SATA3.0 2.5G I226 Soft Router Server

Price range: $256.78 through $444.13

SKU: db9tkqh75n1g00bm9h2g Category:

Description

SPECIFICATIONS


Application: Desktop,Laptop,Mining,Server,Workstation,Industrial Computer

Back I/O Ports: COM,USB 4.0

Battery Included: no

Brand Name: YiHESZ

Chipset: Intel Others

Chipset Manufacturer: Intel

Choice: yes

Form Factor: CeB

High-concerned chemical: none

Material: others

Maximum Ram Capacity: 16 GB

Memory channel: Single

Number Of Memory Slots: 1

Number of PCI: 1

Number of PCIe x 4: 1

Number of PCIe x 8: 0

Number of SATA Ports: 6

Onboard LAN: 3x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Ports: USB 2.0

Processor compatibility: Intel Celeron

RAID Supported: Yes

Socket Type: Onboard CPU

Special Features: NONE

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5

Support USB Type: USB 3.0

Usage Scenario: Household,Gaming,Office,Mining,Audio & Video,Server,Design,others

With CPU: Yes


Please read our product details before purchasing.


The button battery on the board doesn’t include in the parcel. When you receive the board, please buy a CR2032 button battery to install on the board.

1.Note: There are 2 type of CPU, N5105 and N150 model. N5105 using DDR4 RAM, and N150 using DDR5 RAM. Please read description of the option carefully.

2. The N150, in addition to the two 2.5G LAN ports, also has an additional 10G LAN port, but it does not have a PCIe slot.
This motherboard doesn’t support Samsung RAM. The screen may display a distorted or garbled image.

Motherboard:
CPU:
Intel Twin Lake Processor (N150).

Chip: Intel SOC.

GPU:Intel Graphics.

Display: DP +HDMI + Type-C Support three screens at the same time.

USB：1*USB3.0+1*Type-C + 5*USB2.0.

RAM: 1*SO-DIMM DDR5 4800MHz Max16GB.

Network card: 2*Intel I226-V (2.5G) + 1*AQC113-B1-C (10G)(only N150 version has 10G LAN). YiHESZ

Storage: 2*M.2 M Key, support PCIE; 6*SATA3.0 interface.

Back-end I/O:

      2*USB2.0
      1*HDMI+1*DP
      1*USB3.0+1*Type-C
      3*LAN or 2*LAN(N97)
      1*TF

Built-in pins

      1*GPIO
      2*SYS_FAN
      1*COM
      1*AUTO_ON
      1*F_PANEL
      1*F_USB1(Expandable with 2 USB 2.0 ports)
      6*SATA
      24+4 PIN ATX power supply.
      1*CPU_FAN pin
      1*TPM

Size: Mini-ITX, 170 x 170 mm.

I/O Chip: IT8613

System: Support Window10/Window11/Linux.

BIOS : AMI BIOS. YiHESZ

Operating Environment:

Operating: 0~60°C;

Storage: -20°C~75°C;

0%~95% relative humidity, non-condensing.

N150 VERSION:

N5105 VERSION:

Specification：
■ Celeron N5015 CPU (four cores and four threads)
■ 4*2.5G i226-V B3 network port, support Auto power on/wake on LAN/PXE
■ Support HDMI+DP, synchronous or asynchronous display
■ 2*USB3.0, 6*USB2.0
■ 2 SODIMM-DDR4 memory slots, up to 2400/2666/2933MHz
■ 6*SATAIII and 1*M.2 for storage

Product Description：




Additional information

+CPU

N5105, N97, N150
+RAMs

DDR5 8G 4800mHz, DDR5 16G 4800mHz, DDR4 8-2666mHz, DDR4 16G-2666mHz, DDR4 16G-2400mHz, DDR4 4G-2666mHz, none, DDR4 4G-2400mHz, DDR4 8G-2400mHz
