MINER MAKER USB Bitcoin Mini BTC Miner 1W Low Power ESP32 WiFi Setup NerdMiner 1.54inch Display Desktop Clock Lottery Feature

SKU: db9tkqvd4qpg008bjk1g Category: Crypto Electronics

Description

SPECIFICATIONS

Name: MINER MAKER USB Bitcoin Mini BTC Miner 1W Low Power ESP32 WiFi Setup NerdMiner 1.54inch Display Desktop Clock Lottery Feature
Brand: BITujjar
SKU: db9tkqvd4qpg008bjk1g
Availability: InStock

Battery Included: no

Brand Name: Heltec Automation

Choice: yes

ESP32S3 features: 802.11b/g/n Wi-Fi 8MB(QuadSPI) 8MB(OctalSPI)

High-concerned chemical: none

Origin: Mainland China

USB Type C interface: 5V power supply and program download

Working voltage: 3.3V

semi_Choice: yes

This ESP32S8 TV based on an ESP32-S3-WROOM-1 N8R8 ESPRESSIF Wifi module with a 1.54” IPS LCD. Now support the NerMiner v2.

The NerdMiner v2 is a cool gadget that let you try to reach a bitcoin block with a small piece of hardware. The main goal of this project is to let you learn more about bitcoin minery and to have a beautiful piece of hardware in your desktop.
The NerdMiner v2 implements the Stratum protocol to mine on solo pool. Pool can be changed but originally works with web.public-cool.io. The miner is multicore and multithreads, each thread mine a different block template. After receiving a new job from poolthe miner starts doubleHashing different nonces in order to solve the block puzzle. Each miner connected to the pool recives a separate job to avoid mining the same job template.
Mining with the NerdMiner is considered a really difficult thing, It is considered a very unlikely task, because its mining power is so small that the chances of finding the block before another miner are extremely low. This product on its current state must be considered more a gadget than a miner.

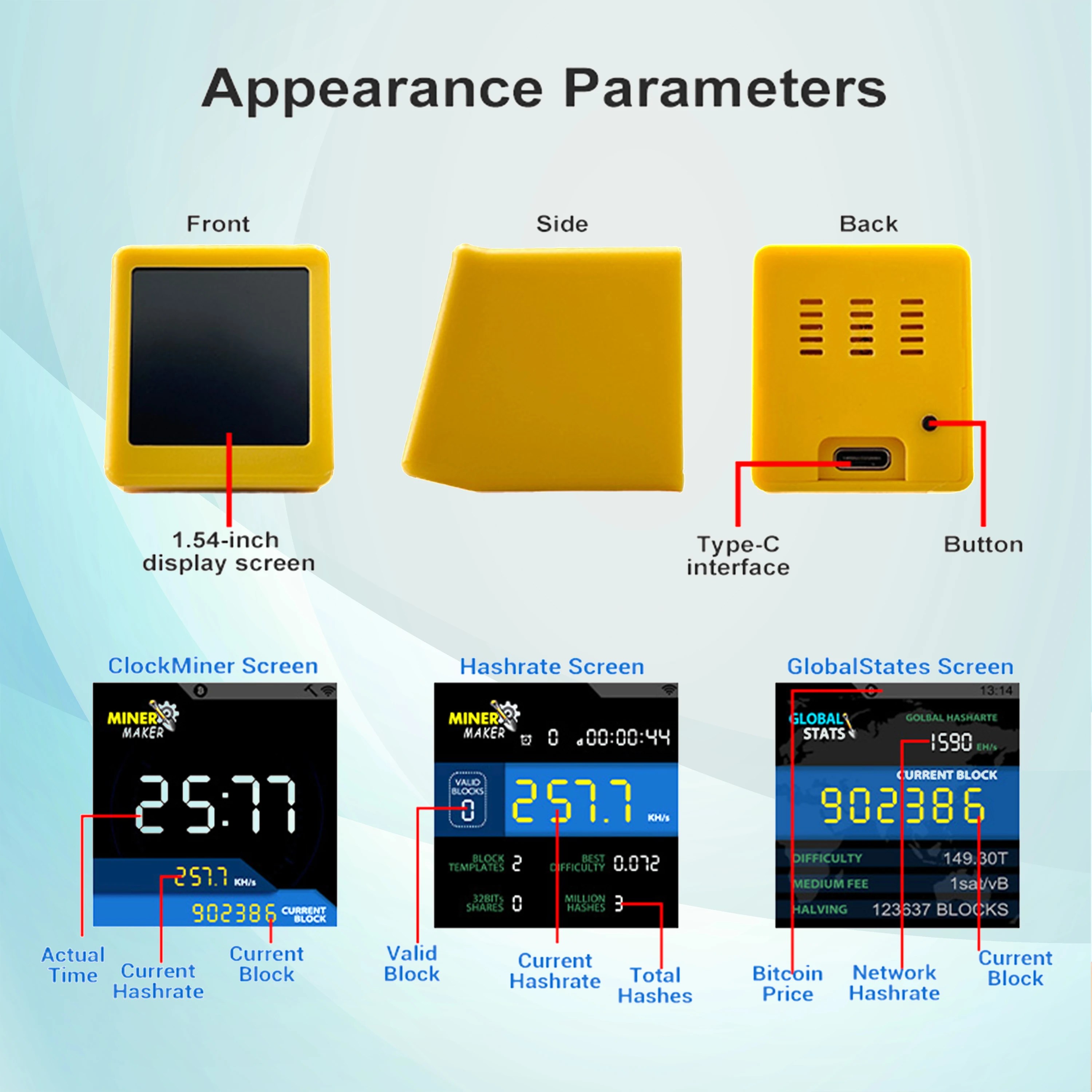

Specification	Details
Product Name	MINER MAKER
Optional Colors	Yellow/Blue/White
Display Screen	1.54 TFT ST7789 240X240
Working Voltage	3.3V
Power Supply	DC 5V
Operating Power	1W
Connection Port	USB-Type C
Device Features	802.11b/g/n Wi-Fi<br>8MB(QuadSPI) 8MB(OctalSPI)
MX1.25 terminal outlet interface	3V3 GND GPIO5 GPIO4

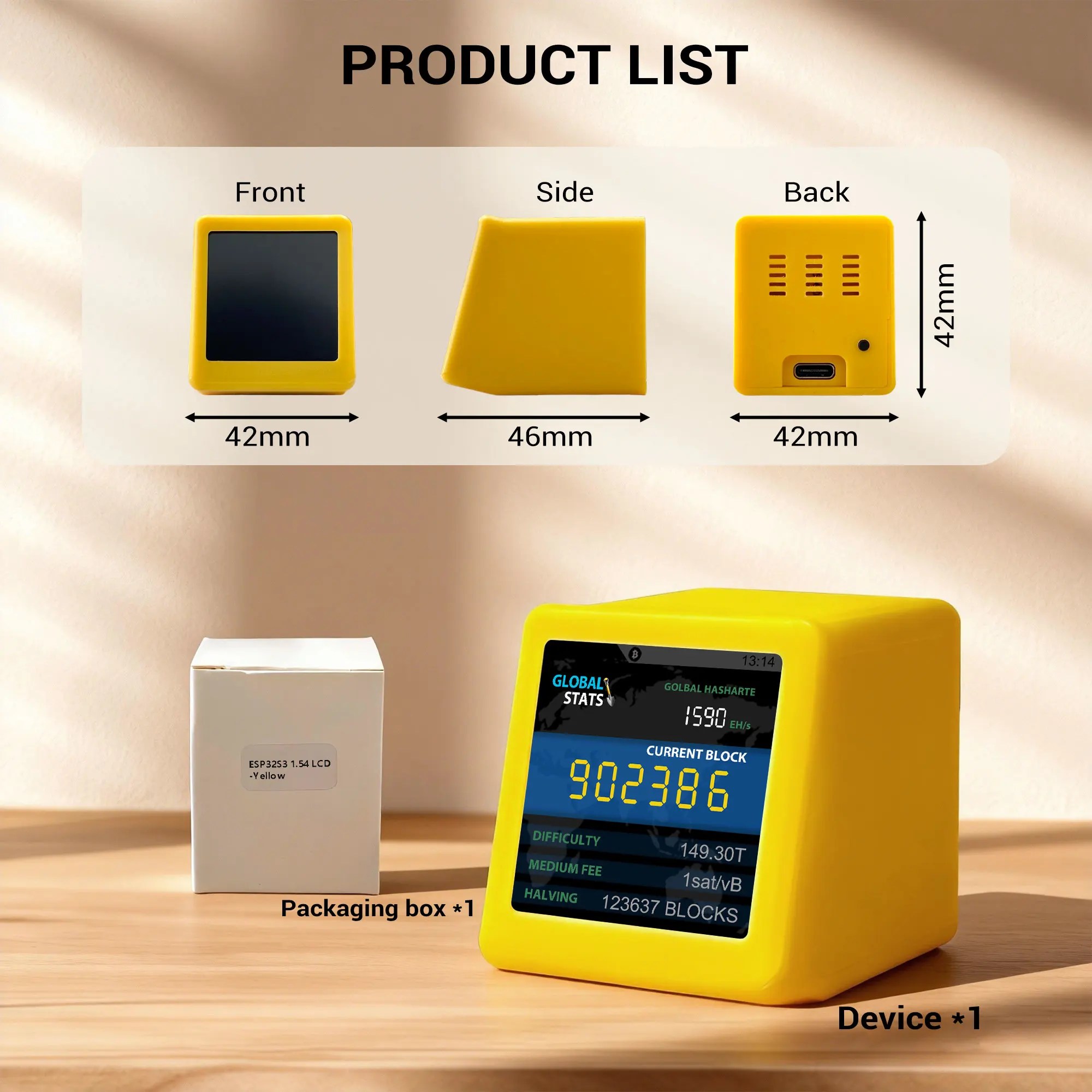

Product Size	42mm X 42mm X 46mm

Interface:

ESP32 S3 N8R8	1.54 TFT ST7789 240X240
GPIO42	DC
GPIO41	CS
GPIO40	SCL/CLK/SCK
GPIO39	SDA/DIN/MOSI
GPIO38	RESET
GPIO21	LCD_BL

GPIO0

Button

Additional information

Color	bule, yellow, white
