Description

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: MACHINIST

Chipset: Q87

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: none

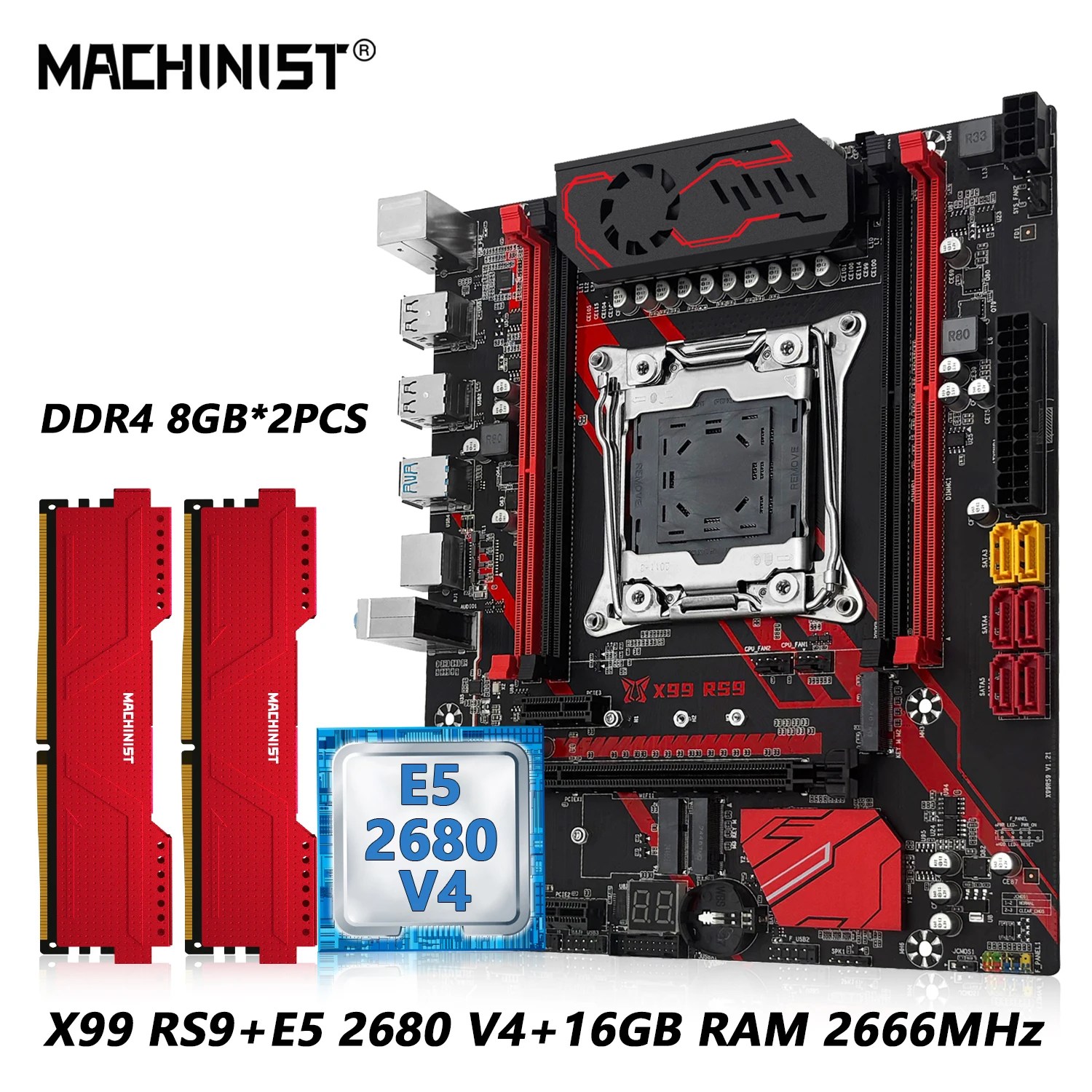

MACHINIST Model: X99-RS9

Material: others

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Four

Number Of Memory Slots: 4

Number of M.2: 3

Number of PCI: 0

Number of PCIe x 1: 2

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 6

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,4-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Ports: USB 3.0

Processor compatibility: Intel Xeon

Quality Certification: ce,ROHS

RAID Supported: no

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

TPM2.0: NO

Usage Scenario: Audio & Video,Office,Video Production,others

With CPU: Yes

> > Before purchasing, please read carefully. Purchase a single motherboard. We do not ship CPUs and RAM! ↓ ↓

Bundle: Motherboards;

Bundle: Motherboards + CPU;

Bundle: Motherboards + CPU + RAM.

> > Gift Accessories: I/O Shield *1, SATA Cable *1, LGA 2011 Heat Sink *1.

(All items are tested manually before being packaged. If any gifts are missing, it cannot be used as a reason for refund. Please understand!)

## As the product batches are constantly updated, the packaging boxes will be sent randomly with both new and old styles. The appearance and content parameters of the packaging boxes are for reference only!

> > Motherboard Information:

Brand: MACHINIST;

Motherboard Model: X99 RS9;

Processor: Supports Intel LGA 2011-3 pin series processors;

Chipset: B85/Q87/C226 Chipset; (!!! All items are tested manually before being packaged. If any gifts are missed during the packaging process, they cannot be used as a reason for a refund. Please understand!

> > Memory:

Technology: Quad-channel DDR4. Supports 2133/2400/2666/3000/3200 MHz;

Maximum capacity: 128GB (32G x 4);

Memory slots: 4 * 288 PIN DDR4;

Supported memory types: Memory types support DDR4 for desktops and servers.

(Notes: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.)

>> Other parameters:

USB interface: 6 USB 2.0 ports, 2 USB 3.0 ports;

Ethernet: Gigabit network card;

PCIe: 1 PCIe 16x port, 2 PCIe 1x ports;

SATA ports: 6;

Diagnostic card: 1;

M.2 interface: PCIE 3.0 *2, NGFF WIFI;

Overall dimensions: 235mm * 200mm.>>Regarding the tariff issue, please ensure that you can solve the customs clearance problem by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>>Note:

The color of the bottom plate of the tank may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.

(2) Due to manual measurement, an error of 1-3mm is allowed.

(3) Due to different displays and different lighting conditions, the picture may not show the actual color of the object. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics department requires that the use of this battery be prohibited.
