Please note!!! If you select only the motherboard, we will only send the K9-D3 motherboard. If you select both the motherboard and processor, we will only send the K9-D3 motherboard + E5 2696 V4 processor. If you select only the motherboard, processor, and memory, we will send the K9-D3 motherboard + E5 2696 V4 processor + DDR3 2x16GB 1866MHz memory. Please read the above instructions carefully before purchasing; orders resulting from incorrect purchases will not be refunded.

Please pay attention to the bundle options before purchasing. Buy a single motherboard. We do not send CPU and memory. Please check carefully.

CPU:
Processor series: Xeon E5 2696 V4 (22 cores / 44 threads)
Main frequency: 2.2GHz
Slot type: LGA 2011-3
L3 cache: 55MB
Process: 14nm
Power consumption: 150W
Type: Server memory
Note:
1: CPU is used, condition good, 1 year warranty
2: There may have some little physical scratches on the surface of the CPU, this is pretty normal.
3: All CPU are strictly tested before shipping

The battery in the motherboard photo will be removed before shipment, because China Post and Customs prohibit carrying batteries. You need to install a CR2032 battery to start the computer, otherwise it will not start.
The motherboard is brand new, and all products will be fully tested before shipment. They will only be shipped after confirmation. Please rest assured to buy.

Specifications:

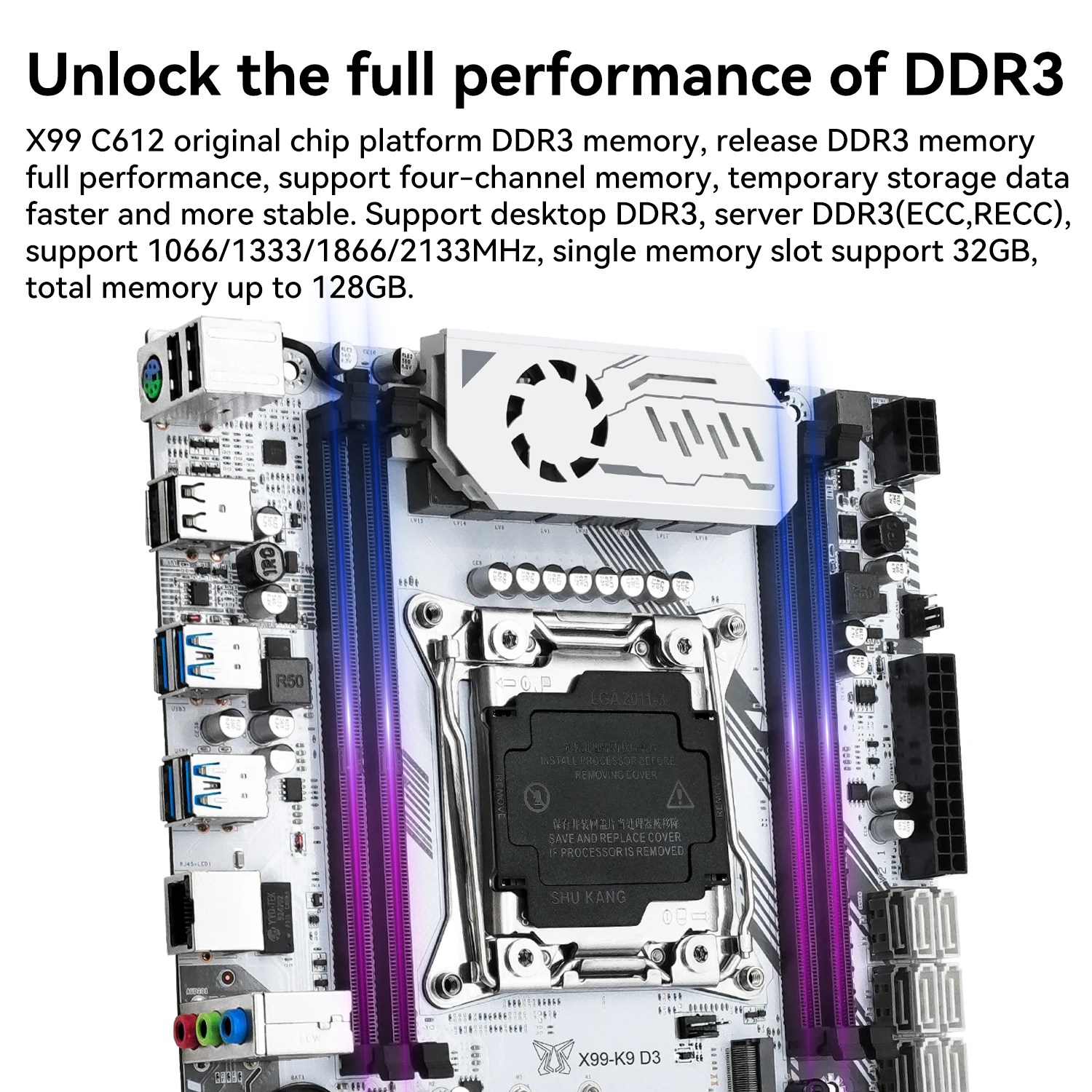

Model: x99 k9-D3 motherboard
Supported CPU: Only supports DDR3 memory LGA2011-3 pin CPU, 2629 V3, 2649 V3, 2669 V3, 2666 V3, 2673 V3, 2676 V3, 2678 V3, 2696 V3 Intel processor
Memory slot: 4 DDR3 memory slots
Applicable memory: desktop DDR3, server DDR3 (ECC, RECC), support 4 channels, maximum support 2133 frequency, 128G (4*32) capacity, no restrictions on memory slot order
Applicable hard disk: SATA 2.5-inch solid state drive, SATA 3.5-inch mechanical hard disk, NVME M.2 solid state drive (PCIe 3.0 x4, fastest read and write speed 3600M/S)
Enter BIOS: After pressing the power button, keep pressing DEL
Quick startup items: After pressing the power button, keep tapping F11
Sound card Realtek ALC 897 5.1 channel
Network card Realtek 8111G Gigabit
Size: M-ATX 235MM*200MM
RAID: support raid 0, raid 1
Graphics card crossfire: not supported
Support S3 sleep
Motherboard size: 235MM*200MM
Power interface: 24pin+8pin

Remarks:
1: This platform requires a strong power supply. Please make sure that your power supply can support the platform (at least 500W).
2: Due to manual measurement, please allow 1-3 mm error.
3: The battery in the motherboard photo will be removed before shipment because China Post and Customs prohibit carrying batteries.
4. Regarding tariff issues, please make sure that you can solve the customs clearance issues by yourself. If you cannot solve it by yourself, we do not recommend that you buy it in our store. We are not responsible for tariffs. Thank you for your understanding!

Must see:

1: The color of the bottom groove plate may vary from batch to batch, but it does not affect the use of the product. The product is continuously optimized and updated.
2: Due to manual measurement, please allow an error of 1-3mm.
3: Due to different monitors and light, the picture may not show the actual color of the product. Thank you for your understanding.
4: This platform requires a strong power supply. Please make sure that your power supply is sufficient to support this solution (at least a 500W model power supply).
5. The motherboard does not come with a coms battery when it leaves the factory. After receiving the motherboard, you need to install the battery and discharge it. Battery model (CR2032 voltage: 3V).
6. All motherboards can provide BIOS files and drivers, please contact customer service to obtain the files.
