Description

SPECIFICATIONS

Application: Desktop

Audio Channels: 7.1

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: MACHINIST

Chipset: Q87

Chipset Manufacturer: Intel

Choice: yes

Form Factor: ATX

High-concerned chemical: none

Material: others

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 256GB

Memory channel: Four

Number Of Memory Slots: 8

Number of M.2: 2

Number of PCI: 0

Number of PCIe x 1: 2

Number of PCIe x 16: 2

Number of PCIe x 4: 1

Number of SATA Ports: 6

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Xeon

RAID Supported: no

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: SATA,M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Audio & Video,Office,Video Production,others

With CPU: No

!!! Please pay attention to the bundled package options before purchasing. Purchase a single motherboard. We do not include the CPU and memory. Please carefully check.

<This link sends the latest version that supports TPM 2.0. >

<When inserting the memory into this motherboard, please pay attention. For detailed instructions, refer to the fifth picture in the main image. >

>> Motherboard Information:

Brand: MACHINIST.

Motherboard Model: X99 MR9S.

Processor: Supports Intel LGA 2011-3 pin series processors.

Chipset: B85/X226/Q87 chipset.

>> Gifted Accessories: I/O Shield *1, SATA Cable *1, LGA 2011 Heat Sink *1.

(All items are tested manually before being packaged. If any gifts are missing, it cannot be a reason for a refund. Please understand!)

>>Memory:

Technology: Quad-channel DDR4. Supports 2133/2666/3200 MHz.

Maximum capacity: 256GB (32G x 8).

Memory slots: 2 * 288 PIN DDR4.

Supported memory types: Supports DDR4 desktop memory, ECC memory.

(Notes: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.)

>> Post-embedded I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interfaces: 4 USB 2.0; 2 USB 3.0.

Ethernet: Gigabit network adapter port.

Audio: 7.1 (microphone input, line output, line input).

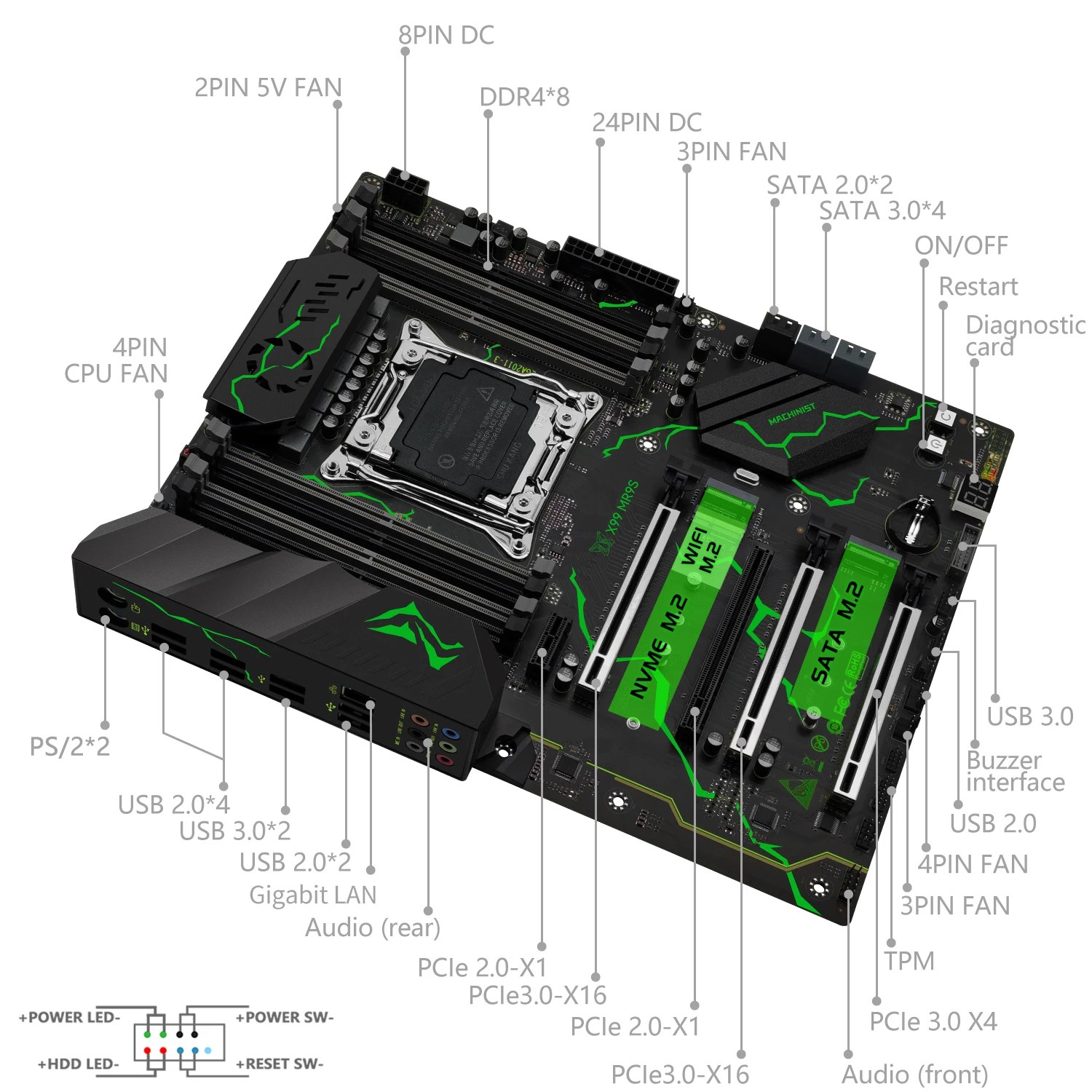

>> Internal Connectors:

TPM 2.0: Suitable for MSI 14PIN interface.

SATA interface: 4 (SATA 3.0), 2 (SATA 2.0).

M.2: 1 PCIE interface, 1 SATA interface, 1 Wi-Fi SATA interface.

PCIe: 3 X16 PCIe, 1 X1 PCIe, 1 PCIe 3.0.

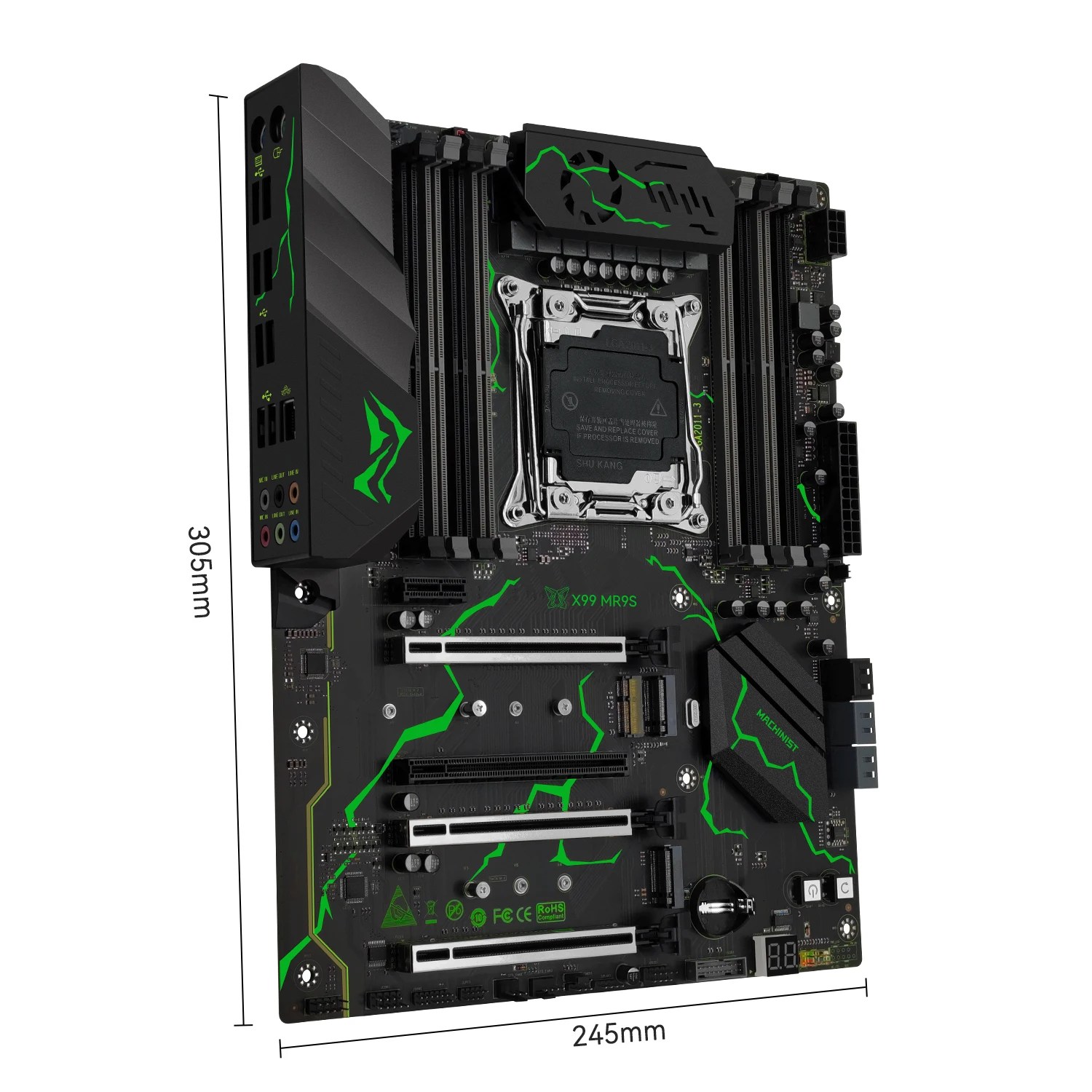

Size: 305mm * 245mm.

Weight of the motherboard (including packaging): Approximately 1.4 kilograms.

>> Regarding the issue of tariffs, please make sure that you can handle the customs clearance yourself. If you are unable to resolve it, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:

(1) The color of the bottom plate may vary by batch, but it will not affect the use of the product. The product is constantly being improved and upgraded.

(2) Due to manual measurement, a tolerance of 1-3mm is allowed.

(3) Due to different displays and different light conditions, the pictures may not accurately represent the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is capable of supporting this platform. (At least 500W brand power supply)

(5) The battery shown in the motherboard photo is not included. It will be removed before shipment as the logistics requirements prohibit the use of this battery.
