Description

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: MACHINIST

Chipset: Intel H97

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Micro-ATX

High-concerned chemical: none

Material: others

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 32 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s)

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 2.0

Package: Yes

Processor compatibility: Intel Core

RAID Supported: Yes

Socket Type: LGA1150

Special Features: NONE

Storage Interface Type: SATA

Support Memory Type: DDR3

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Audio & Video,Office

With CPU: No

>> Contents inside the package:

# Main product: MACHINIST H97M PRO motherboard * 1 piece;

## Gift accessories: I/O cover, SATA cable;

### All items are tested manually before packaging. If any gift items are missing, please understand!

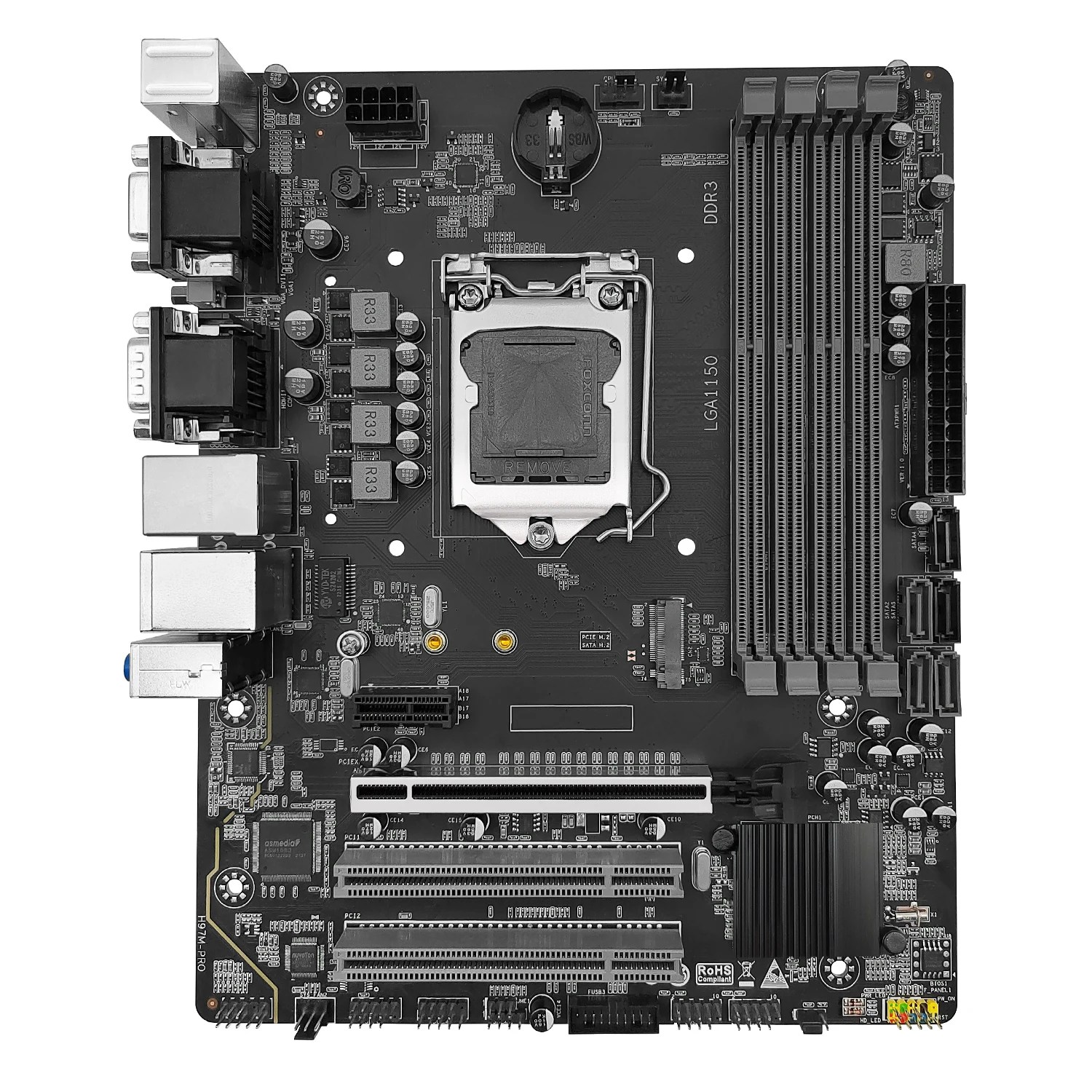

>> Motherboard Information:

Brand: MACHINIST.

Motherboard Model: H97M PRO.

Processor: Supports Intel LGA 1150-pin series processors.

Chipset: H97/Z97 series chipset.

>>Memory:

Technology: Dual-channel DDR3. Supports 1066/1333/1600/1866 MHz.

Maximum capacity: 32GB (8G x 4).

Memory slots: 4 * 240 PIN DDR3.

Supported memory types: Supports DDR3 desktop memory.

(Notes: Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.)

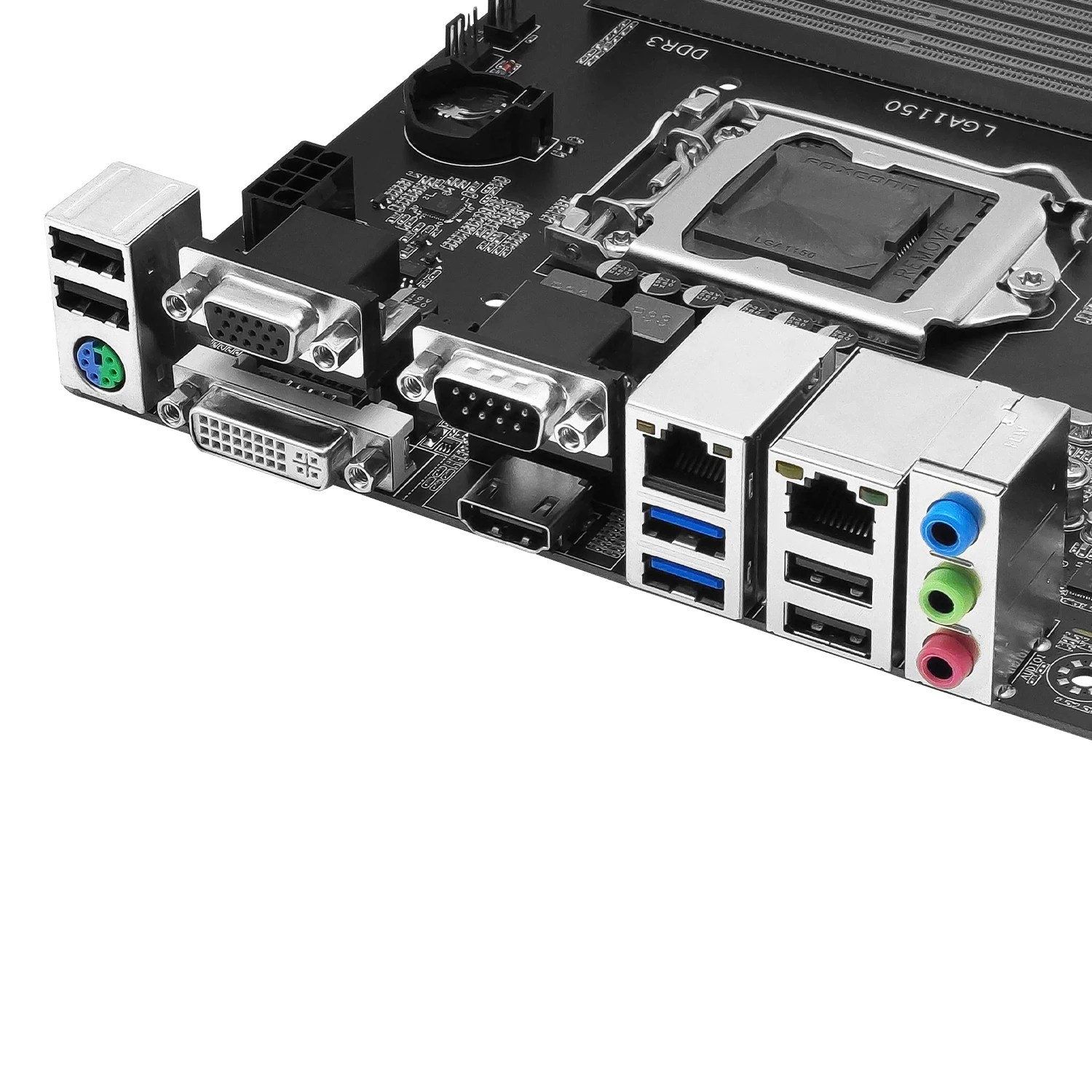

>> Rear I/O:

USB and PS/2 interfaces: 1 (PS/2 mouse, PS/2 keyboard), 2 USB 2.0 ports.

Display interfaces: 1 VGA; 1 HDMI; 1 DVI; 1 communication port.

USB_LAN: 2 Realtek Gigabit network cards; 2 USB 2.0 ports, 2 USB 3.0 ports.

Audio: 1 PC (microphone input, line output, line input).

>>Others:

USB 2.0: 4 ports (1 JUSB can be converted into 2 USB 2.0 ports).

USB 3.0: 2 ports (1 FUSB can be converted into 2 USB 3.0 ports).

FAN: 2 s_fan and 1 C_FAN.

SATA ports: 5 SATA ports (3 SATA3.0 and 2 SATA2.0).

Audio: 12×5-pin connector.

M.2: 1 M.2 port (SATA or PCIE protocol optional).

Jlpc: 1 battery with 2×5 pins.

ATXPWR interface: 1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket.

Serial port: 1 2x5Pin connector.

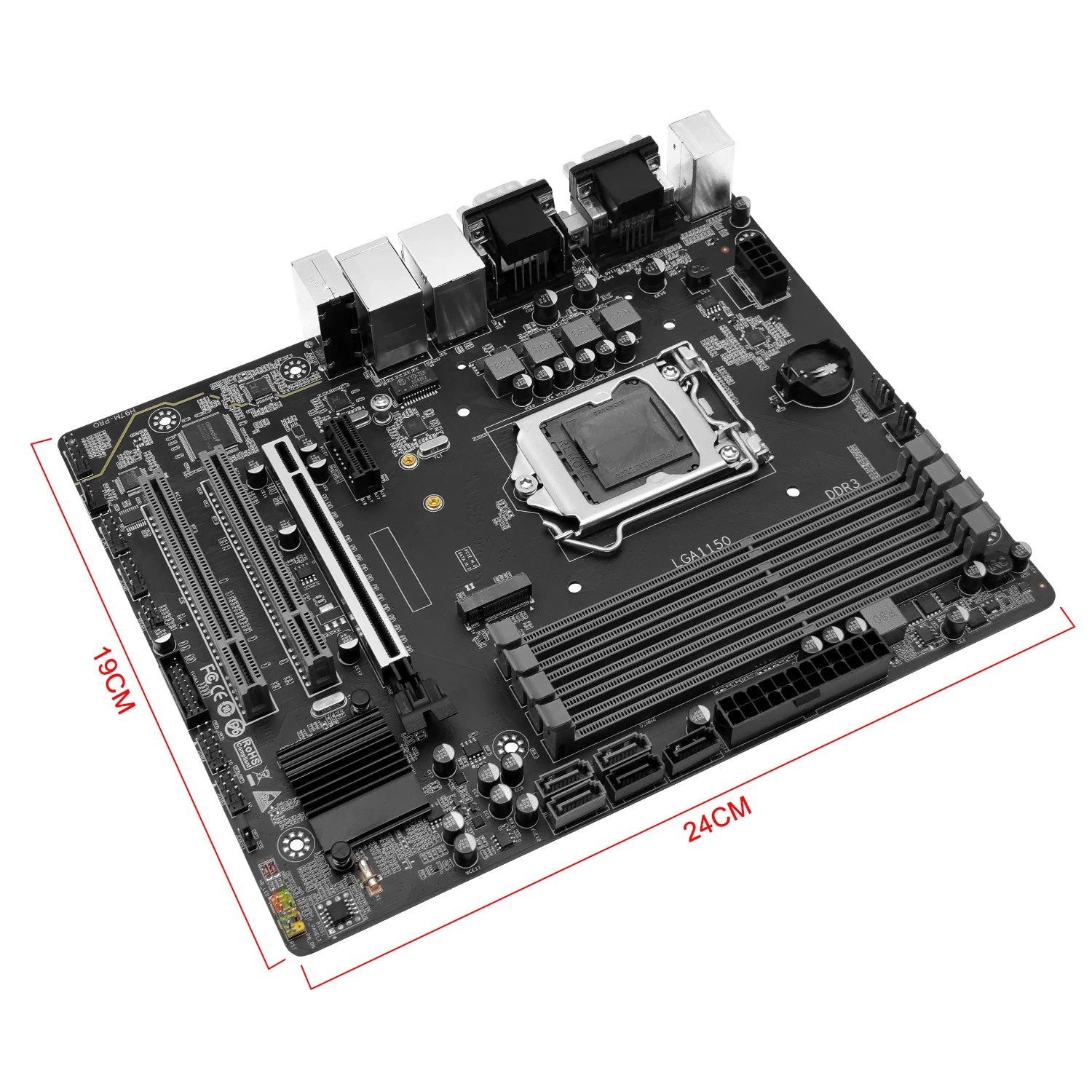

Size: 195*244mm;

Motherboard weight (including packaging): approximately 0.88 kilograms. >> Regarding the issue of tariffs, please ensure that you can handle the customs clearance yourself. If you are unable to resolve it, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Attention:

(1) The color of the bottom plate may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.

(2) Due to manual measurement, please allow for an error of 1-3mm.

(3) Due to different displays and different light conditions, the pictures may not accurately represent the actual color of the item. Thank you for your understanding.

(4) This platform requires a strong power supply. Please ensure that your power supply is sufficient to support this platform. (At least a 500w brand power supply is required)

(5) The battery in the motherboard photo is not included. It will be removed before shipment as the logistics requirements prohibit the use of this battery.
