Description

SPECIFICATIONS

Application: Desktop

Audio Channels: 2.1

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: MACHINIST

Chipset: H61

Chipset Manufacturer: Intel

Choice: yes

Form Factor: Mini-ITX

High-concerned chemical: none

Material: others

Max LAN Speed: 100Mbps

Maximum Ram Capacity: 16 GB

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),4-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 2.0

Package: Yes

Ports: M.2

Processor compatibility: Intel Core

Quality Certification: ce,ROHS

RAID Supported: no

Socket Type: LGA 1155

Special Features: NONE

Storage Interface Type: M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR3

Support USB Type: USB 2.0

Supports M.2 SSD: 2280

Usage Scenario: Audio & Video,Office,Video Production,others

With CPU: No

>>This link offers multiple options. Before making a purchase, please select the configuration you need to proceed with the purchase. ↓

1. Motherboards;

2. Motherboards + CPU;

3. Motherboards + CPU + RAM;

>>The package contains:

# Main Product: MACHINIST H61C motherboard *1 piece;

Gift accessories: I/O shield, SATA cable.

All samples are manually tested and packaged before sending. If any gifts are missed, please understand!

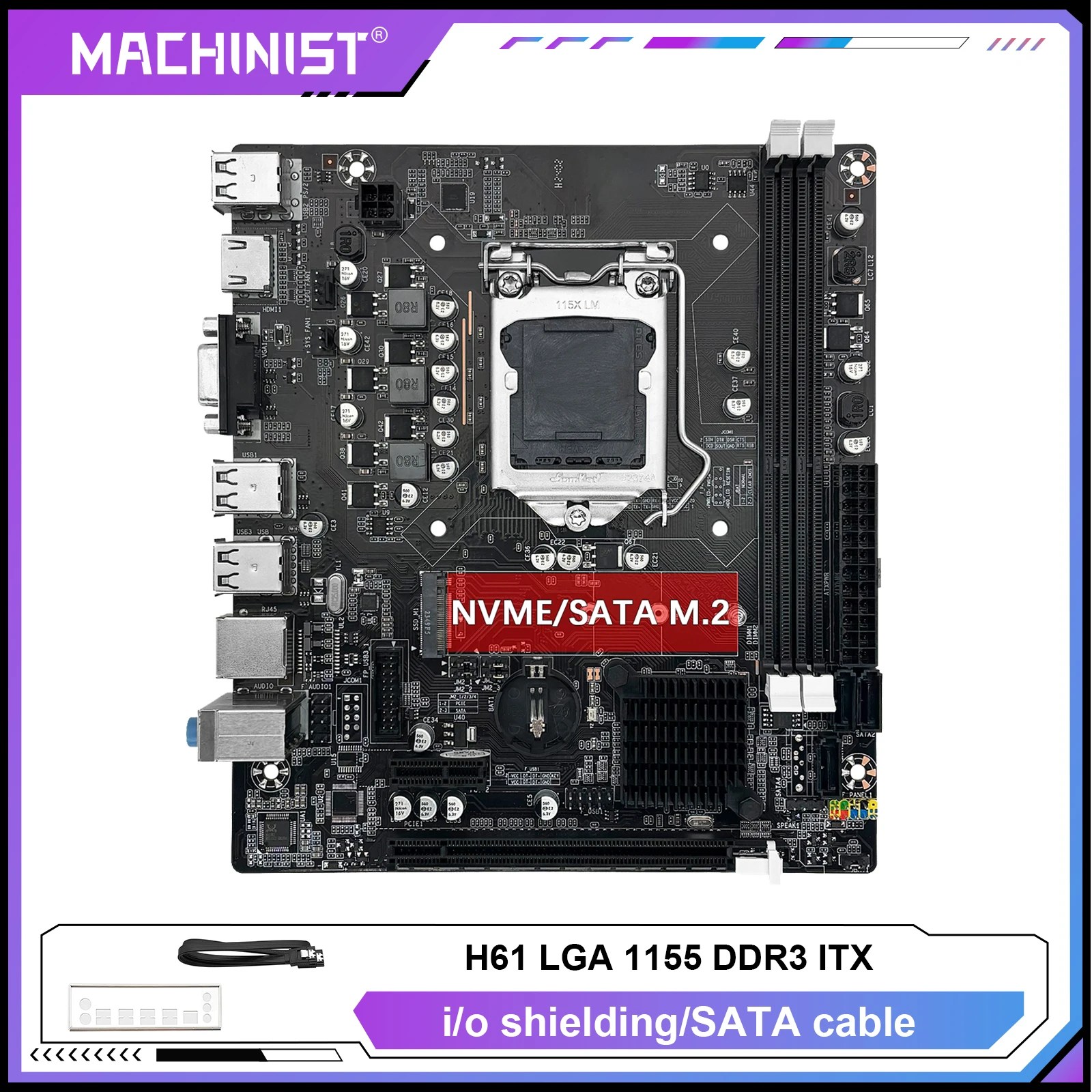

>>Motherboard information:

Brand: MACHINIST.

Motherboard model: H61C.

Processor: Supports Intel LGA 1155 pin series processors.

Chipset: H61 chipset.

>>Memory:

Technology: Dual-channel DDR3. Supports 1333/1600/1866 MHZ.

Maximum capacity: 32GB (16G x 2).

Memory slot: DDR3.

Supported memory types: Only DDR3 desktop memory is supported.

Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may not be compatible.

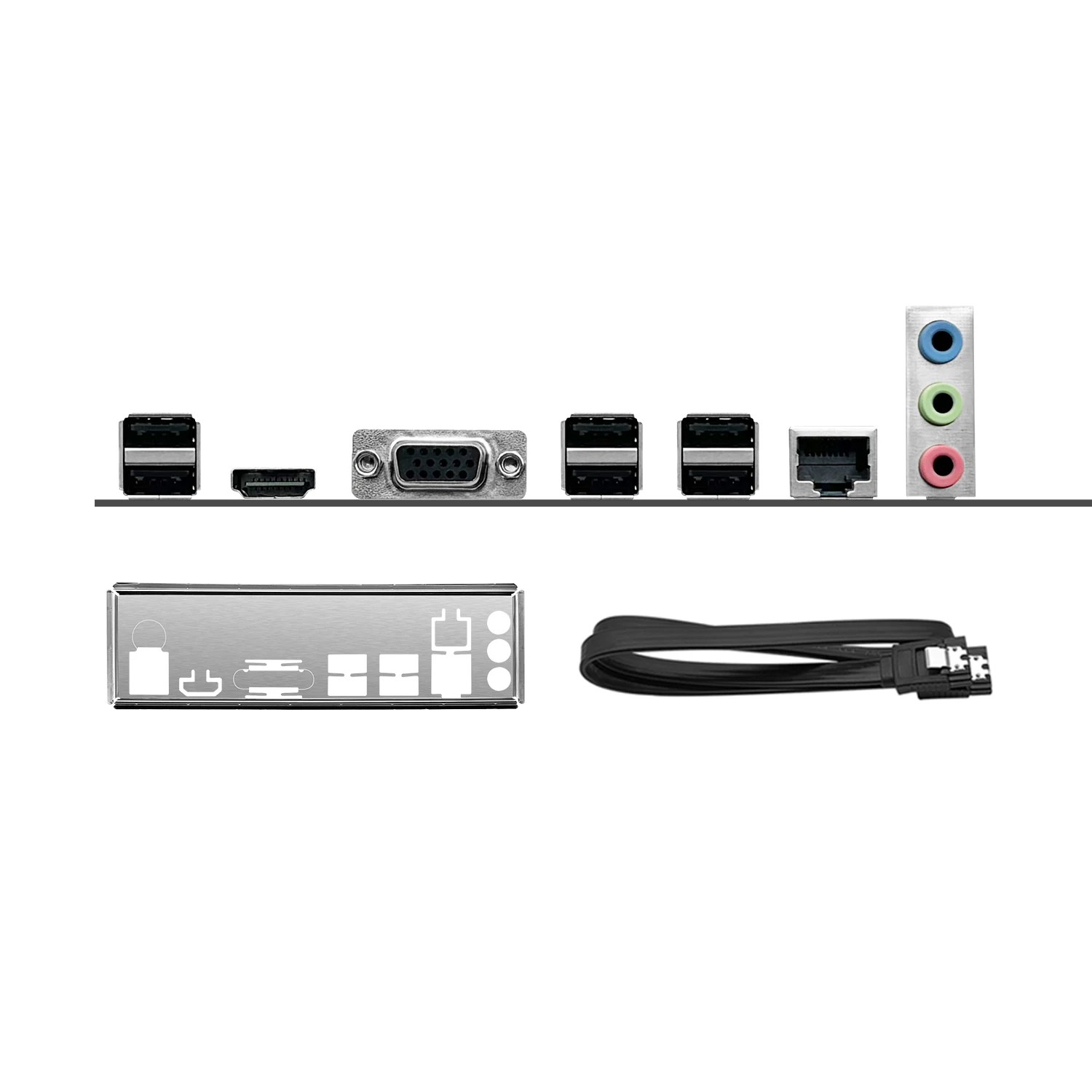

>>Post-i /O:

Display interface: Supports VGA & HDMI display.

USB interface: 6 USB 2.0 ports .

Ethernet: 100M network adapter port.

Audio: 1 (microphone input, line output, line input).

>>Internal connector:

SATA interfaces: 3 (SATA2.0).

M.2:2 (NVME/SATA, default sata interface).

PCIe: 1 X16 PCIe and 1 X1 PCIe.

External dimensions

Size: 190mm*170mm.

Motherboard weight (including packaging) : Approximately 0.7 kilograms.>>Regarding the tariff issue, please ensure that you can solve the customs clearance problem by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>>The color of the bottom plate of the tank may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.

>> Note:

(2) Due to manual measurement, an error of 1-3mm is allowed.

(3) Due to different displays and different lighting conditions, the picture may not show the actual color of the object. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics department requires that the use of this battery be prohibited.
