MACHINIST B75 X7 VB Motherboard LGA1155 Support Dualchannel DDR3 RAM

$57.88 (excl. tax)

MACHINIST B75 X7 VB Motherboard LGA1155 Support Dualchannel DDR3 RAM. Check the CPU socket and RAM type match your build before ordering. Pay with Bitcoin, USDT or other cryptocurrencies.

SKU: db9tcl975n1g00bm9gr0 Category: Crypto Electronics

Description

SPECIFICATIONS

Name: MACHINIST B75 X7 VB Motherboard LGA1155 Support Dualchannel DDR3 RAM
Brand: BITujjar
SKU: db9tcl975n1g00bm9gr0
Price: 57.88 USD
Availability: InStock

Application: Desktop

Audio Channels: 2.1

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: MACHINIST

Certification: RoHS,CE

Chipset: Intel Others

Chipset Manufacturer: Intel

Choice: yes

Form Factor: CeB,Mini-ITX

High-concerned chemical: none

MACHINIST Model: B75 LGA 1155

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 1

Number of PCIe x 1: 0

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 2

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s)

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Ports: HDMI

Processor compatibility: Intel Core i3,Intel Core i7

Quality Certification: ce,ROHS

RAID Supported: no

Socket Type: LGA 1155

Special Features: RGB

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR3

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Video Production,others

With CPU: No

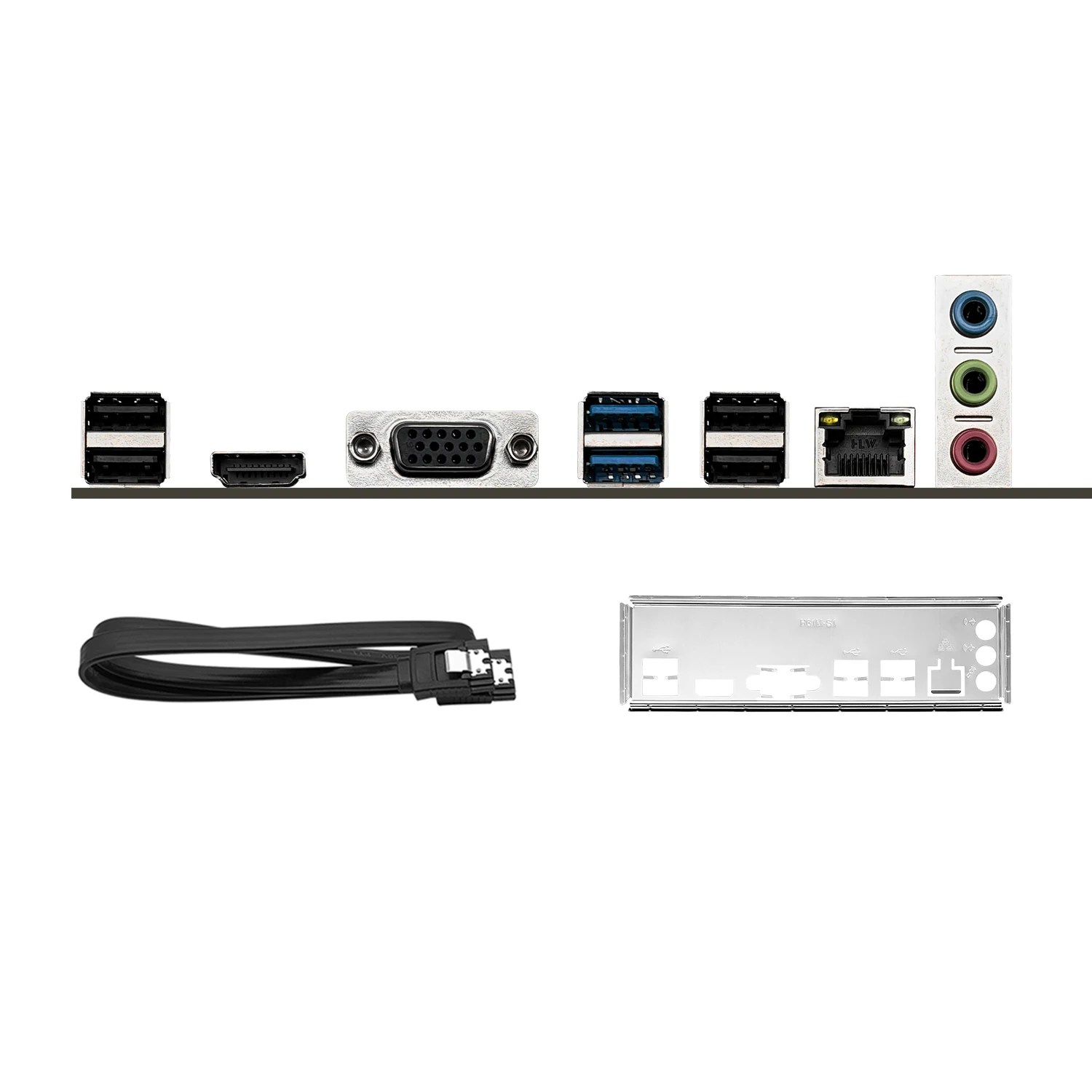

Package Contents: B75 X7 VB Motherboard *1
I/O shield *1
SATA cable *1
Motherboard Specifications:
Brand: MACHINIST
Model: B75 X7 VB
Chipset: Intel Q77 (not fixed, 7 series chipset, compared to H61, mainly adds USB 3.0 and SATA 3.0)
Supported CPUs: Intel LGA1155 socket, Core 2nd-3rd generation, Xeon E3-1200 series
Supported Memory: Desktop DDR3, dual channel, 1333/1600 frequency, maximum supported capacity 8GB*2=16GB
Supported Hard Drives: SATA 2.0*2 (theoretical speed 300MB/s), SATA 3.0*1 (theoretical speed 600MB/s), NVMe M.2*1 (PCIe 0.0×4 specification, theoretical speed 1600MB/s), NGFF M.2 (switchable via jumper cap, theoretical speed 300M/S)
Sound Card Model: Realtek ALC887 High-Fidelity Sound Card
Network Card Model: Realtek 8111H Gigabit Ethernet Adapter

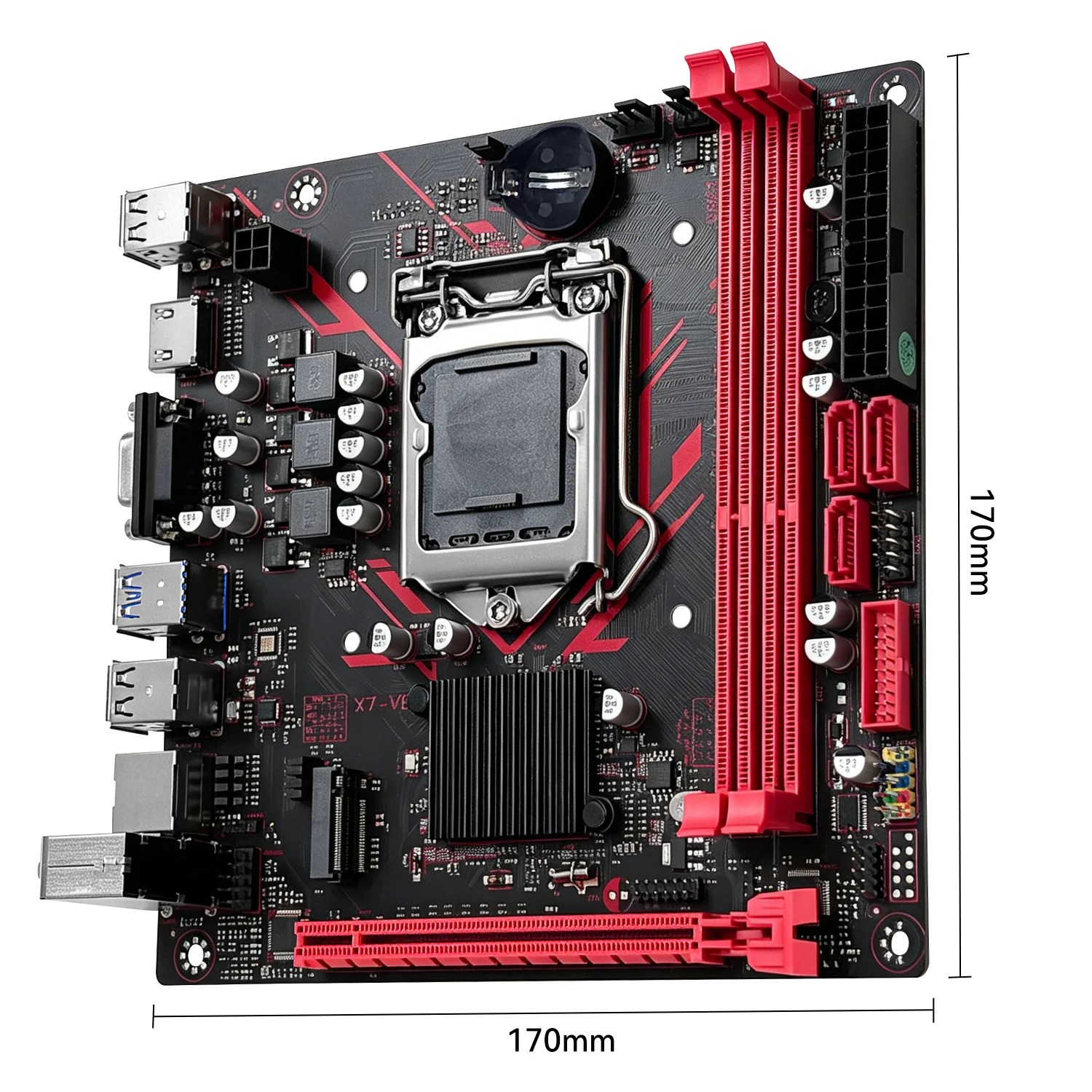

Dimensions: ITX, 17*17 cm
Weight (excluding packaging): 0.55kg

BIOS Boot Shortcut Key: F11
How to enter BIOS: Press the power button and then repeatedly press the DEL key (pressing the DEL key on the numeric keypad will not work)
Supports Secure Boot and TPM
