Description

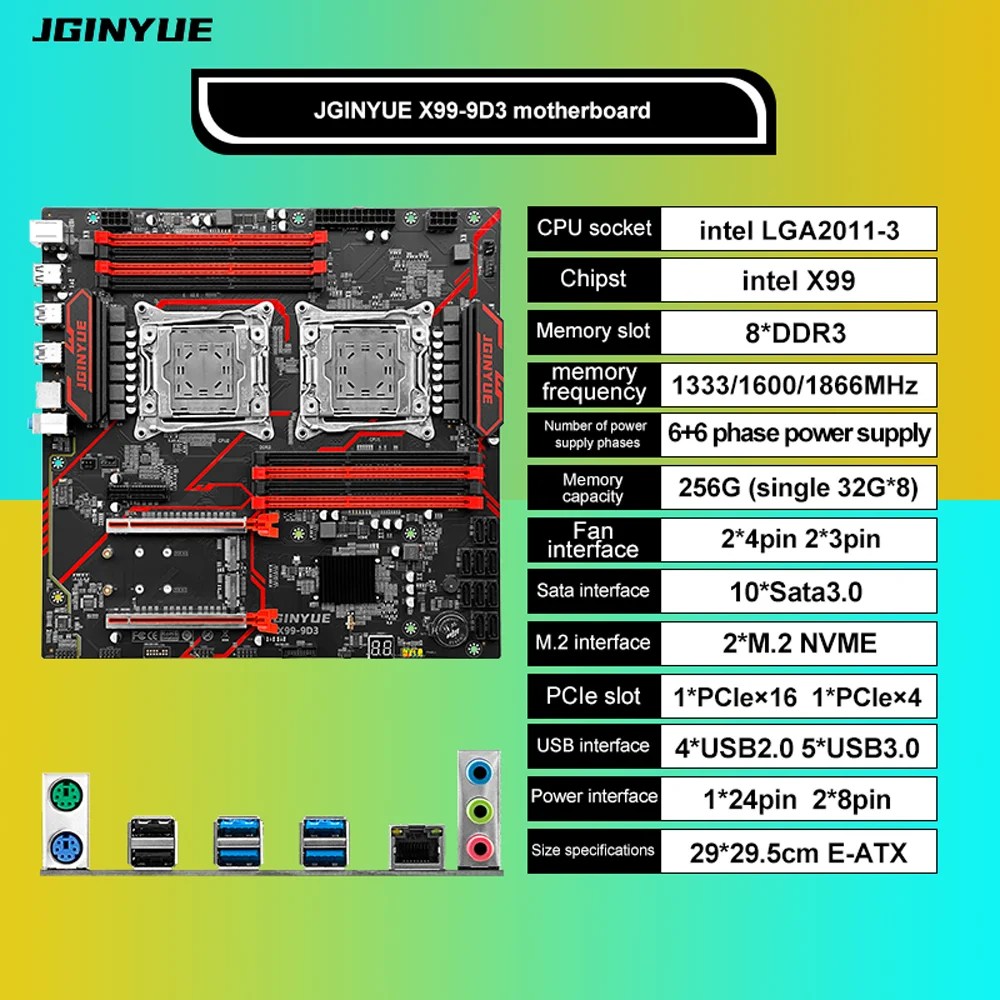

SPECIFICATIONS

Application: Desktop,Workstation,Industrial Computer

Back I/O Ports: 1x RJ45

Battery Included: Yes

Brand Name: TFDP

Chipset: Intel X99

Chipset Manufacturer: Intel

Choice: yes

High-concerned chemical: none

Material: Plastic,aluminum,Metal

Maximum Ram Capacity: 256GB

Number of PCI: 0

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: No

Processor compatibility: Intel Others

RAID Supported: no

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR3

Usage Scenario: Enthusiast & Overclocking,Gaming,Office,Design,Industrial Computer

With CPU: No

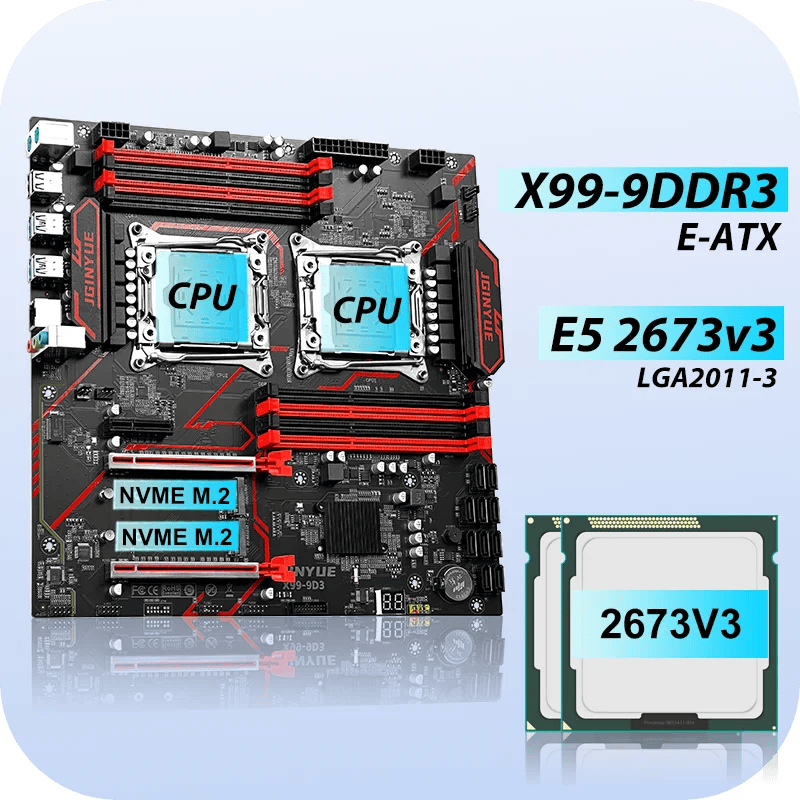

JGINYUE X99‑9D3 Dual‑CPU Kit, Motherboard + 2×Xeon E5‑2673 V3 LGA2011‑3, total 24‑Core 48‑Thread. 8×DDR3 Max 128GB, 2×M.2 NVMe,10×SATA3.0 E‑ATX. For workstation, multi‑GPU, VM virtualization. RAM/SSD NOT included.

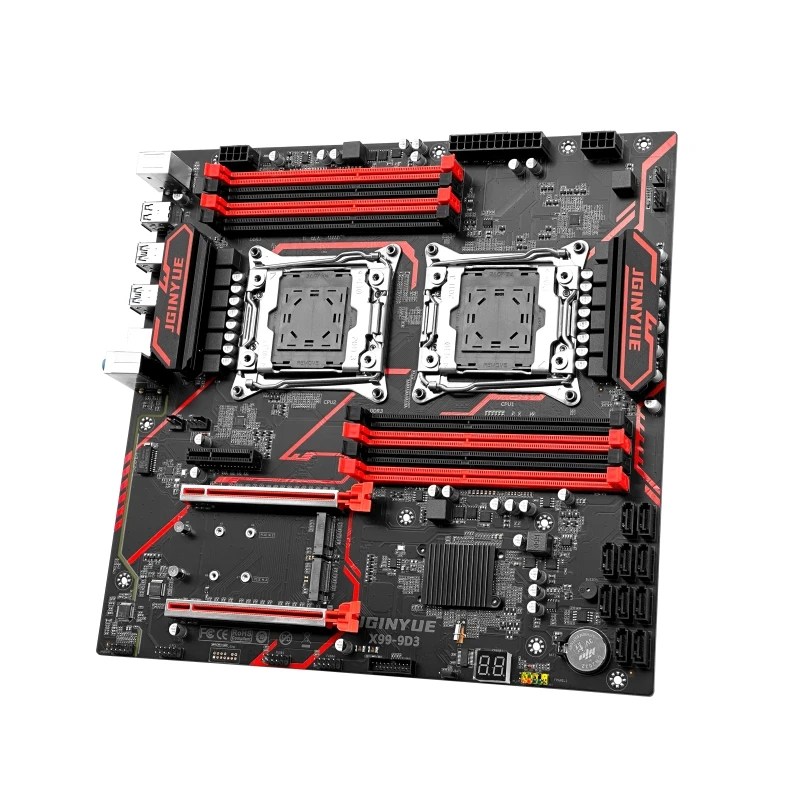

JGINYUE X99‑9D3 Dual‑CPU Kit (Motherboard + 2 pcs Xeon E5‑2673 V3)
Cost‑effective dual‑processor workstation bundle, built for heavy multitasking, virtual machine, multi‑GPU rendering, game multi‑opening and data computing.

✅ Bundle Includes
1 × JGINYUE X99‑9D3 Dual‑CPU Motherboard
2 × Intel Xeon E5‑2673 V3 CPU (12‑Core 24‑Thread each, total 24‑Core 48‑Thread, LGA2011‑3)

✅ Dual LGA2011‑3 CPU Sockets
Pre‑installed with two Xeon E5‑2673 V3 processors. Dual‑CPU design delivers massive multi‑thread performance for workloads requiring high core count.

✅ 8‑Slot DDR3 Memory
8 × DDR3 DIMM slots, support ECC & Non‑ECC DDR3 RAM, max capacity up to 128GB, support 1333‑1866MHz frequency. Memory needs to be installed for both CPU channels for best performance.

✅ Dual M.2 NVMe & Mass Storage
2 × M.2 NVMe slots with PCI‑E3.0 X4 bandwidth for high‑speed SSD.
10 × SATA3.0 ports for HDD / SSD, great for large‑capacity storage array.

✅ Powerful PCI‑E Expansion
2 × PCI‑E3.0 X16 slots for multi‑GPU graphics cards;
1 × PCI‑E3.0 X4 slot for RAID card, network card or other expansion hardware.

✅ Stable Power Circuit
6+6‑phase power supply with solid capacitors, stable output for dual Xeon CPUs.
Power Requirement: 24‑Pin main power + dual 8‑Pin CPU power connector.

✅ Rear I/O Interface
4×USB3.0, 2×USB2.0, PS/2 keyboard & mouse port, Gigabit LAN port, HD audio jacks.
Multiple internal fan headers, front‑panel USB headers.

✅ Form Factor

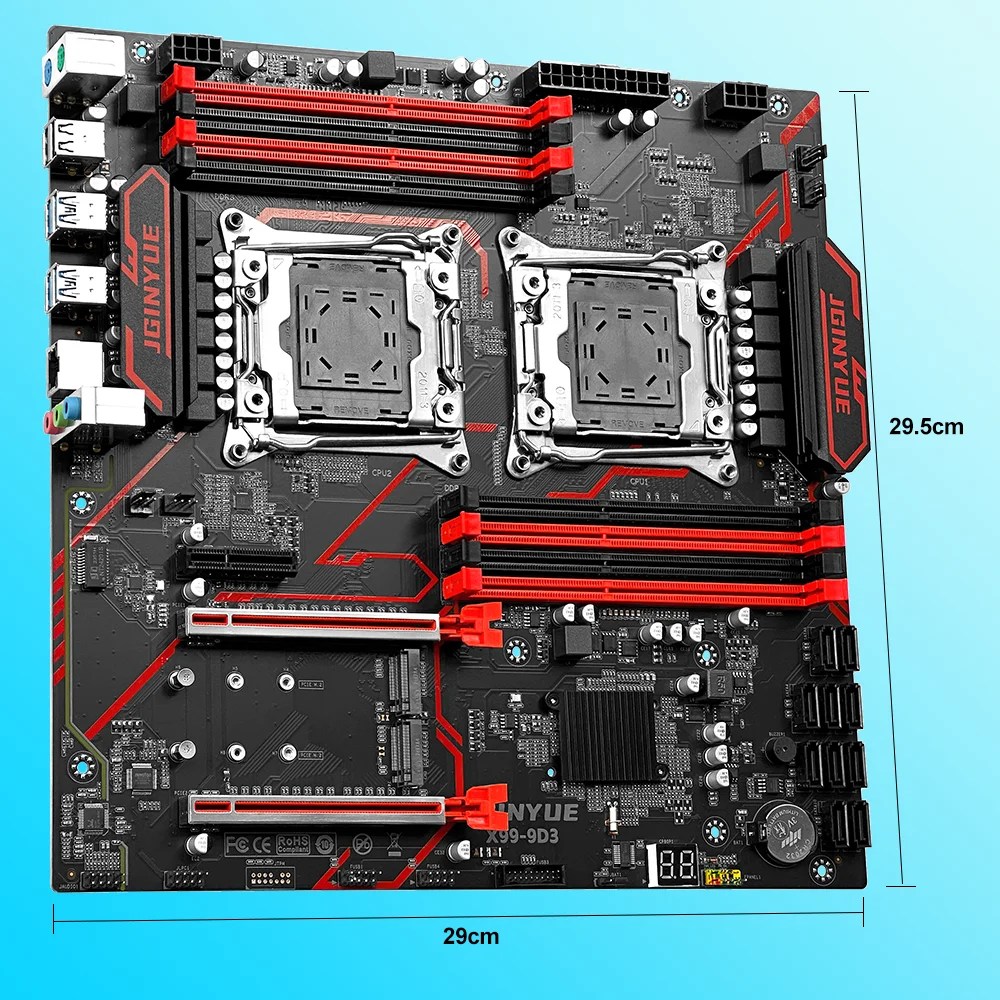

E‑ATX dimension: 290 × 295 mm. Please confirm your case supports E‑ATX motherboard before purchase.

Important Notes:
1. RAM, SSD, graphics card, CPU coolers are NOT included in this kit.
2. Must use E‑ATX compatible PC case. Dual 8‑pin CPU power cables are required.
3. Memory must populate memory banks for both CPUs to achieve full‑channel performance.
4. Please install corresponding LAN, audio and chipset drivers after OS installation.

Package List

1 × JGINYUE X99‑9D3 Dual‑CPU Motherboard
2 × Intel Xeon E5‑2673 V3 CPU
1 × I/O Backplate
SATA cables, CPU coolers, RAM, SSD are NOT included
