Description

SPECIFICATIONS

Name: HUANANZHI X99-QD3 Motherboard Supports Intel LGA2011-3 Platform Processor DDR3 4-Channel 1866/1600/1333MHz 128GB SATA3.0 6Gb/s
Brand: BITujjar
SKU: 1005010650239518-Default Title_db9tkp5nspsg008rckc0
Price: 127.34 USD
Availability: InStock

Application: Desktop,Laptop

Back I/O Ports: 1x RJ45

Battery Included: Yes

Brand Name: HUANANZHI

Chipset: Q87

Chipset Manufacturer: Intel

Choice: yes

High-concerned chemical: none

Material: aluminum,Metal

Maximum Ram Capacity: 128 GB

Number of PCI: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Others

RAID Supported: no

Socket Type: LGA 2011-3

Special Features: NONE

Storage Interface Type: M.2 (NVMe)

Support Memory Type: DDR3

Usage Scenario: Enthusiast & Overclocking,Gaming,Office

With CPU: No

X99-QD3

Supports Intel LGA2011-3 platform processor (supports XQiang E5-2629 v3/ E5-2649 v3/E5-2669 v3/E5-2673 v3/ E5-2676 v3/E5-2678 v3/E5-2696 v3/E5-2666 v3/E5-2686v4E5-2696v4)
4 DDR3 memory slots, supporting four-channel DDR3 1866/1600/1333MHz memory specifications (depending on the CPU), supporting up to 128GB
Realtek High Definition Audio; Realtek Gigabit Network Card
6 SATA3.0 6Gb/s hard drive interfaces
6-layer PCB backplane, 6-phase power supply
2x M.2 2280 NVME PCIE X4 3.0 32Gbps
4 USB2.0; 2 USB3.0; 2 sets of USB2.0 pins 1 set of USB3.0 pins
1 PCI Express 3.0 x16 slot; 1 PCI Express 3.0 x4 slot; 1 PCI Express 2.0 x1

Motherboard model: X99-QD3
Chipset: Intel Q87/Z87 series
CPU pin: supports Intel LGA 2011-3 pin processor (supports Zhiqiang E5-2629 v3/ E5-2649 v3/E5-2669 v3/E5-2673 v3/ E5-2676 v3/E5-2678 v3/E5-2696 v3/E5-2666 v3/E5-2686v4/E5-2696v4))
Memory slots: 4 DDR3 memory slots
Memory standard: supports four-channel DDR3 1866/1600/1333MHz specification memory (depending on the CPU), supports up to 128GB
Storage interface: 6 SATA3.0 6Gb/s hard drive interfaces
Expansion slots: 1 PCI Express 3.0 x16 slot, 1 PCI Express 3.0 x4 slot, 1 PCI Express 2.0 x1 slot
Expansion interface: 2 M.2 2280 NVME PCIE X4 3.0 32Gb/s
Onboard sound card: Realtek High Definition Audio
Onboard network card: Realtek Gigabit network card
Power interface: 24PIN+8PIN
Fan pins: 2 CPU_FAN pins, 1 SYS_FAN pin
Number of power supply phases: 6-phase power supply
Number of PCB layers: 6 layers
Motherboard specifications: 245*190MM M-ATX board type

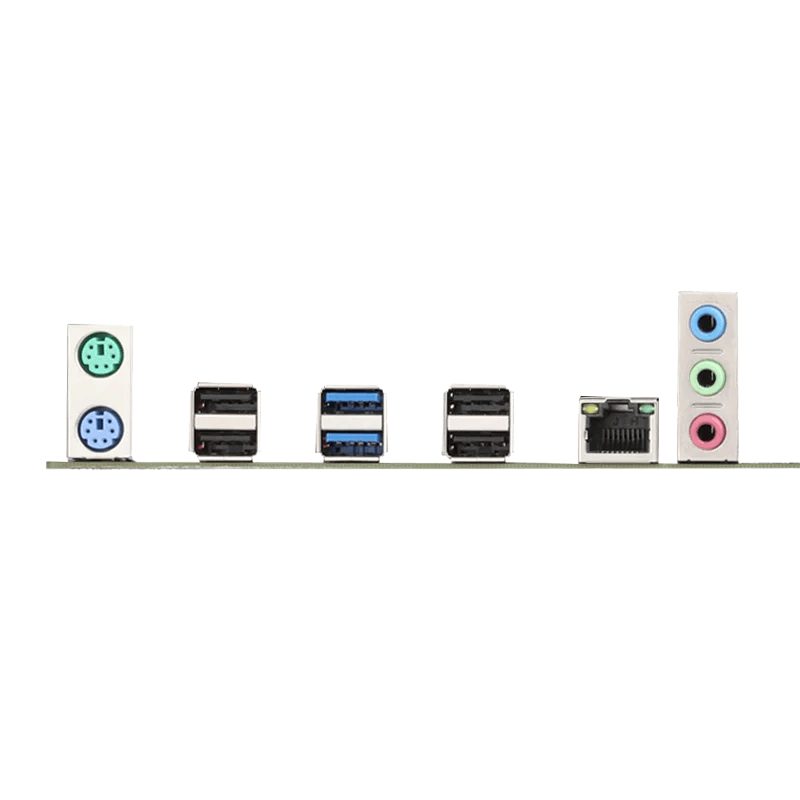

Rear panel interface: 1 PS/2 keyboard and mouse interface, 4 USB2.0 interfaces, 2 USB3.0 interfaces, 1 network interface, 1 3-hole audio interface
Front panel interface: 2 sets of USB2.0 pins, 1 set of USB3.0 pins, 1 set of front audio pins, 1 set of COM pins, 1 set of power-on pins
Supported systems: Windows7 Windows10 Windows11
BIOS:AMI UEFI BIOS/UI graphical interface
Packing list: 1 motherboard, 1 SATA hard drive data cable, 1 product warranty card
