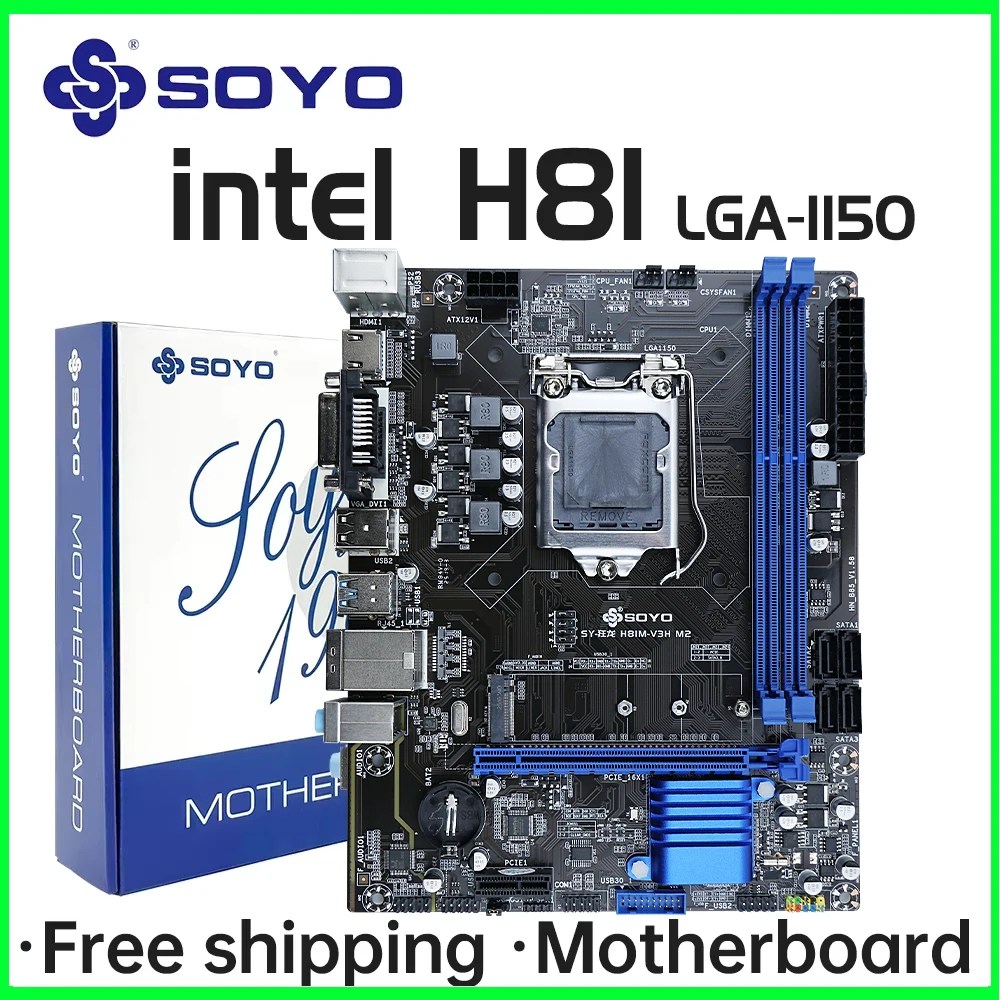

H81 Motherboard SOYO DDR3 LGA 1150 RAM 16GB Support I3 I5 I7 Nvme NGFF M.2 Slot VGA HDMI-Compatible RJ45 Gaming Mainboard
$57.69
12 in stock
Description
SPECIFICATIONS
Application: Desktop
Audio Channels: 5.1
Back I/O Ports: 1x RJ45,VGA (D-Sub),DVI-A,HDMI 1.1,4 x USB 2.0,PS/2
Battery Included: no
Brand Name: SOYO
Certification: FCC,CE
Chipset: Intel H81
Chipset Manufacturer: Intel
Choice: yes
High-concerned chemical: none
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 32 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 1
Number of PCI: 0
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 4: 0
Number of PCIe x 8: 0
Number of SATA Ports: 4
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),PWR_FAN Connector,4-pin +12V Power Connector,USB 3.0 Connector,8-pin +12V Power Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI – E standards: PCI-E 3.0
Package: Yes
Ports: Ethernet
Processor compatibility: Intel Pentium,Intel Celeron
Quality Certification: ce,FCC
RAID Supported: no
SATA RAID: 0
Socket Type: LGA1150
Special Features: NONE
Storage Interface Type: SATA 2,SATA 3,M.2 (NVMe),M.2 (SATA)
Support Memory Type: DDR3
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Production,3-D Modeling,Video Rendering
With CPU: No
>>>CPU：LGA_1150
Support: Intel Core, Pentium, Celeron Series
> > > Memory: 2 * DDR 3, with a total of 16G and a maximum of 8G, supporting 1066/1333/1600MHz frequency.
> > > Storage: 1 * M.2 slot (jump PCIE and SATA3.0)3*SATA 3.0 interface.
> > > display interface: 1 * HDMI 2.0 interface, 1*VGA interface, 1*DVI.
> > > Network: 1 * RJ45 interface
> > > PCIE slot: 1 * pcie x16 slot (pcie 3.0×16); 1*PCIE X1 slot (PCIE2.0 X1)
> > > USB interface: 4xUSB2.0 interface, compatible with USB 1.1 ,2xUSB3.0 interface.
> > > The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
