Description

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Brand Name: Gigabyte

Certification: CE

Chipset: Intel B460

Chipset Manufacturer: Intel

Choice: yes

High-concerned chemical: none

Maximum Ram Capacity: 128 GB

Number of PCI: 1

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: No

Processor compatibility: 10th Intel Core i3,10th Intel Core i7,10th Intel Core i5,10th Intel Core i9

Quality Certification: ce

RAID Supported: Yes

Socket Type: LGA1200

Special Features: Cooling Armor,Support for Overclocking

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR4

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video

With CPU: No

semi_Choice: yes

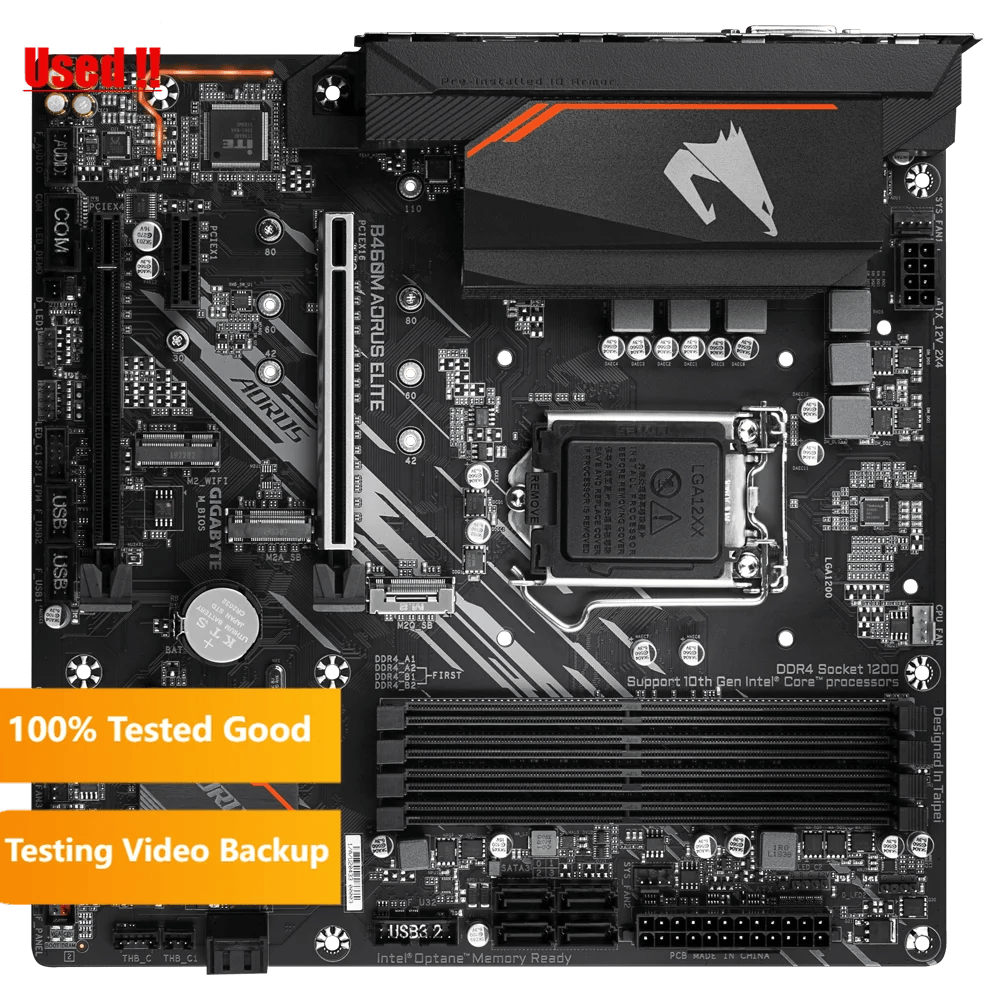

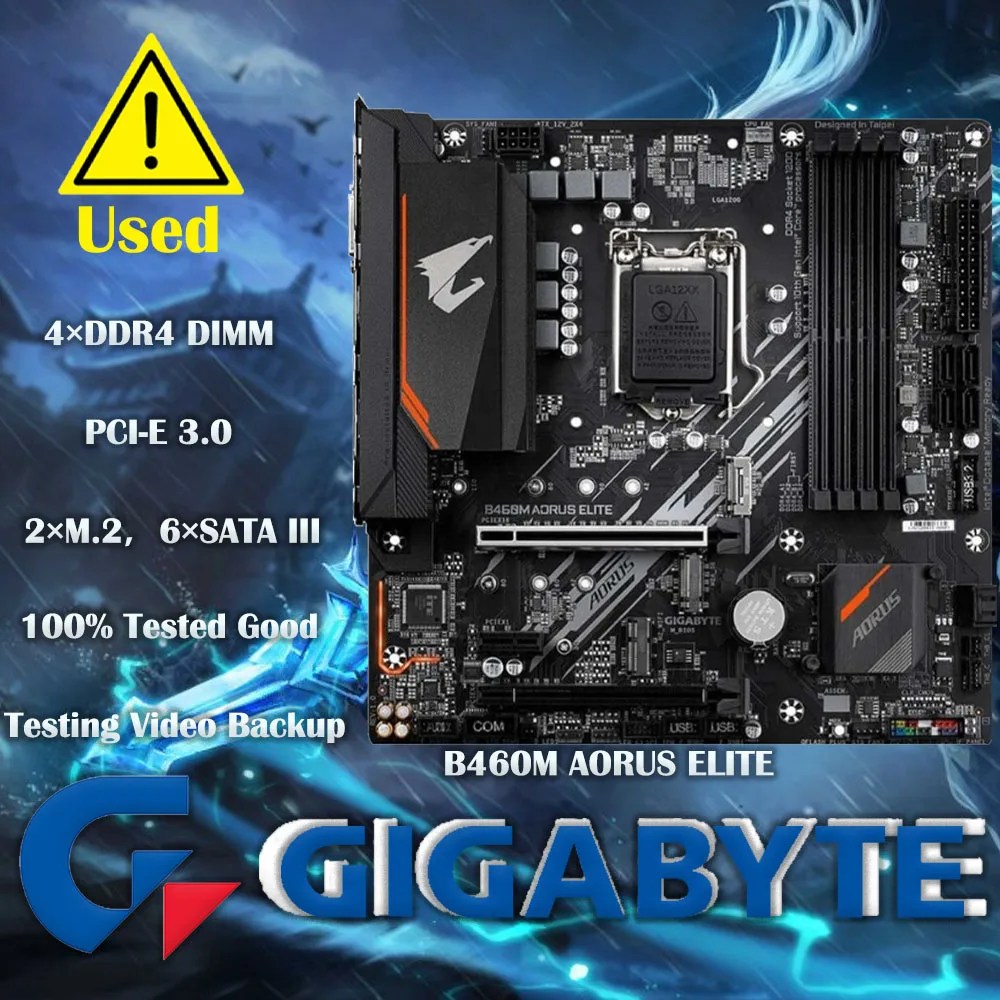

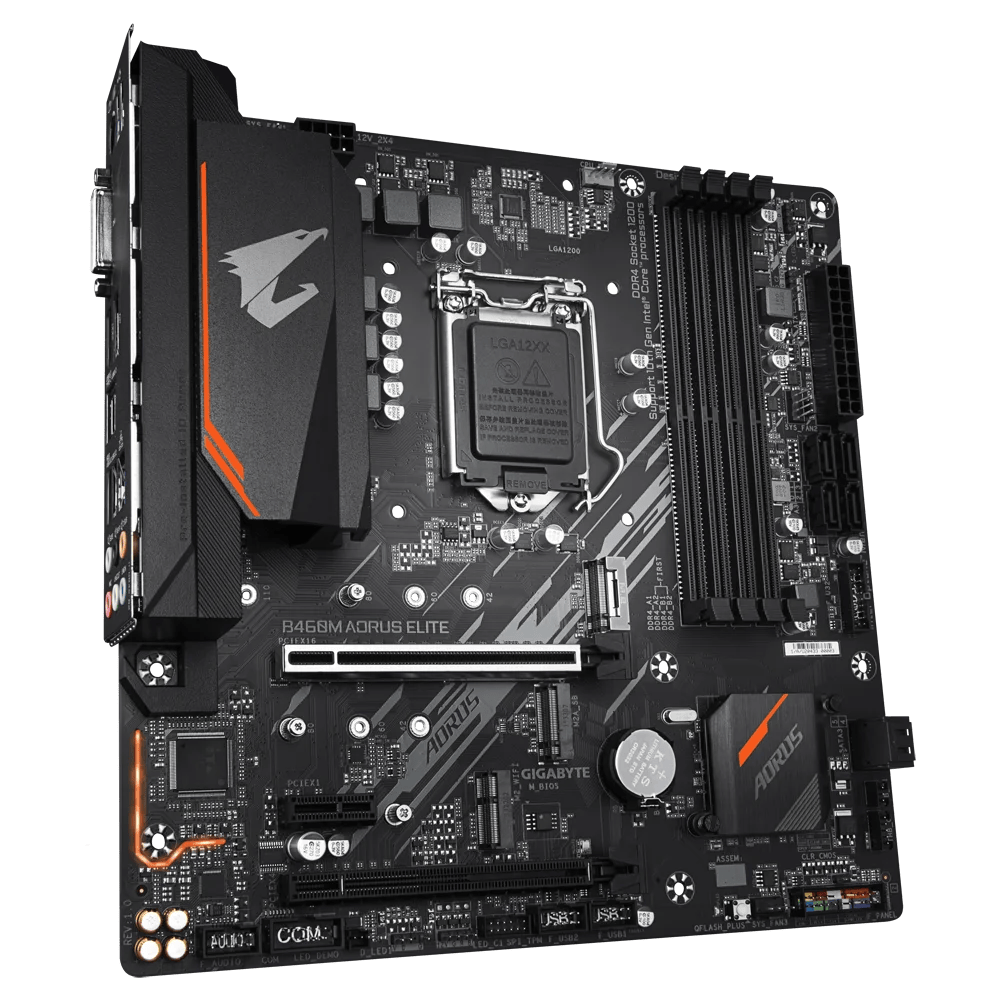

B460M AORUS ELITE parameter

Motherboard chip

Integrated chip graphics card/sound card/network card

Main chipset Intel B460

Chipset description Using Intel B460 chipset

Display chip CPU built-in display chip (requires CPU support)

Audio chip integrated Realtek ALC1200 7.1 channel audio chip

Network card chip onboard Intel GbE Gigabit network card

Processor specifications

CPU type Tenth generation Core/Pentium/Celeron

CPU socket LGA 1200

Memory specifications

Memory type 4×DDR4 DIMM

Maximum memory capacity 128GB

Memory description Support dual-channel DDR4 2933/2666/2400/2133MHz memory

Storage expansion

PCI-E standard PCI-E 3.0

PCI-E slot 1×PCI-E X16 graphics slot, 1×PCI-E X1 slot, 1×PCI-E X4 slot

Storage interface 2×M.2 interface, 6×SATA III interface

I/O interface

USB interface based on chipset:

1×Type-C interface (1 backplane, support USB 3.2 Gen 1), 5×USB3.2 Gen1 interface (3 backplane + 2 built-in), 2×USB2.0/1.1 interface (2 backplane)

Based on the chipset + USB2.0 Hub:

4×USB2.0/1.1 interface (4 built-in)

Video interface 1×DVI interface, 1×Display Port interface, 1×HDMI interface

Power connector One 8-pin, one 24-pin power connector

Other interfaces 1×PS/2 keyboard and mouse universal interface, 1×RJ45 network interface, 6×audio interface

Board type

Motherboard type Micro ATX type

Dimensions 24.4×24.4cm

Software management

BIOS performance 1 128 Mbit flash, using authorized AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Other parameters

Overclocking function does not support

RAID function Support RAID 0, 1, 5, 10

Hardware monitoring Voltage detection, temperature detection, fan speed detection, over temperature warning, fan failure warning, intelligent fan control
