Description

SPECIFICATIONS

Application: Desktop,Laptop,Server,Workstation,Mining,Industrial Computer

Back I/O Ports: HDMI 1.3,Displayport

Battery Included: no

Brand Name: YiHESZ

Chipset: Intel Others

Chipset Manufacturer: Intel

Choice: yes

Form Factor: CeB

High-concerned chemical: none

Material: others

Max LAN Speed: 2500Mbps

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 2

Number of PCI: 1

Number of PCIe x 1: 0

Number of PCIe x 16: 1

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 8

Onboard LAN: 3x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 3.0

Package: Yes

Ports: PCI-Express X1

Processor compatibility: 8th Intel Core i5,9th Intel Core i3,9th Intel Core i5,Intel Pentium,Intel Core i7,Intel Core i3,8th Intel Core i7,9th Intel Core i7,Intel Celeron,8th Intel Core i3

RAID Supported: Yes

SATA RAID: 0,1,5,10

Socket Type: LGA 1151

Special Features: RGB,Intel Optane Ready,Cooling Armor,Support for Overclocking,HiFi,NONE

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Design,Video Production,Industrial Computer,Workstation,Server,Mini PC,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC

With CPU: No

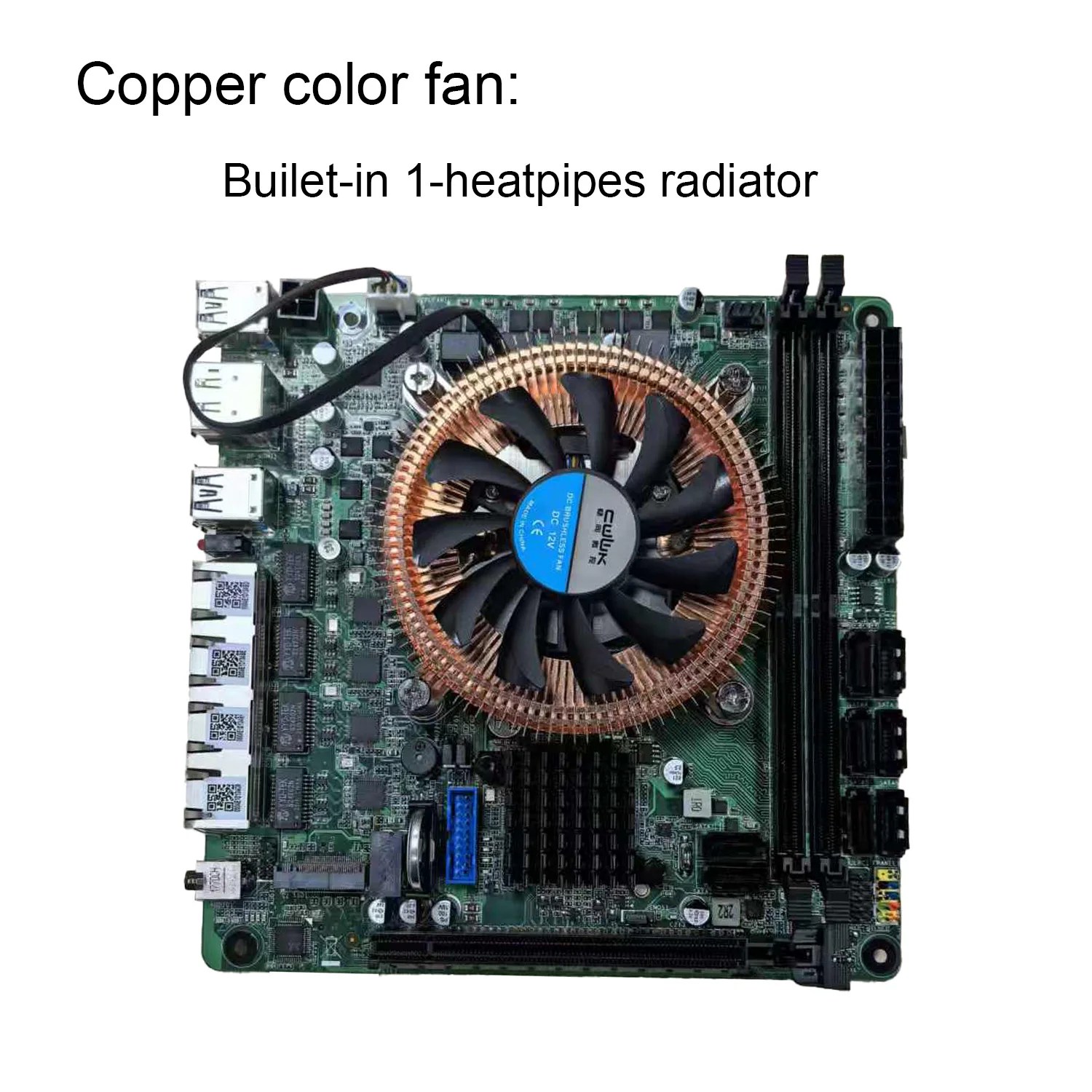

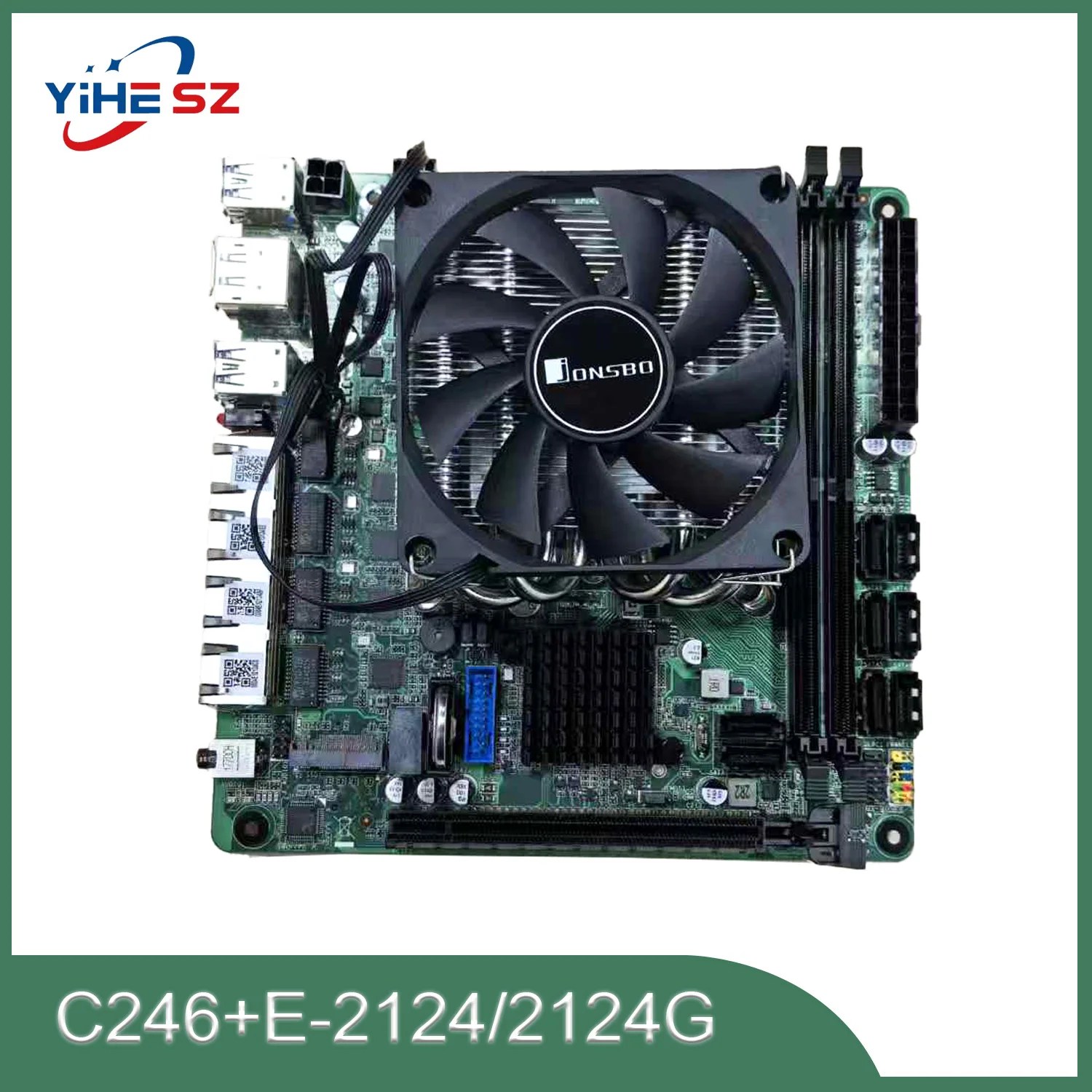

Note: The parcel include CPU and radiator, the CPU is used E-2124 or E-2124G. if include RAM, the RAM is used too.

Note: The RAM only supports ordinary desktop memory and pure ECC memory, doesn't support server memory, doesn't support server ECC menory.

doesn't support server memory

doesn't support server memory

doesn't support server memory

Support Intel 8th and 9th generation processors
(Support Celeron, Core I3, I5, I7 series)
Support dual-channel DIMM DDR4 memory
1 x PCIE X16 slot
2 x M.2 2280 slots (support NVME 3.0)
Rear IO provides 4xUSB3.0
Built-in pins can expand 2 USB3.0 interfaces;
1 USB2.0 built-in port
1 x HD; 1 x DP (support 4K resolution 3840*2160 60Hz)
8 x SATA3.0
4 x 2.5G network cards, support PXE and network wake-up functions
Support 24Pin+4Pin ATX power input
Windows 10, Windows 11, Linux
