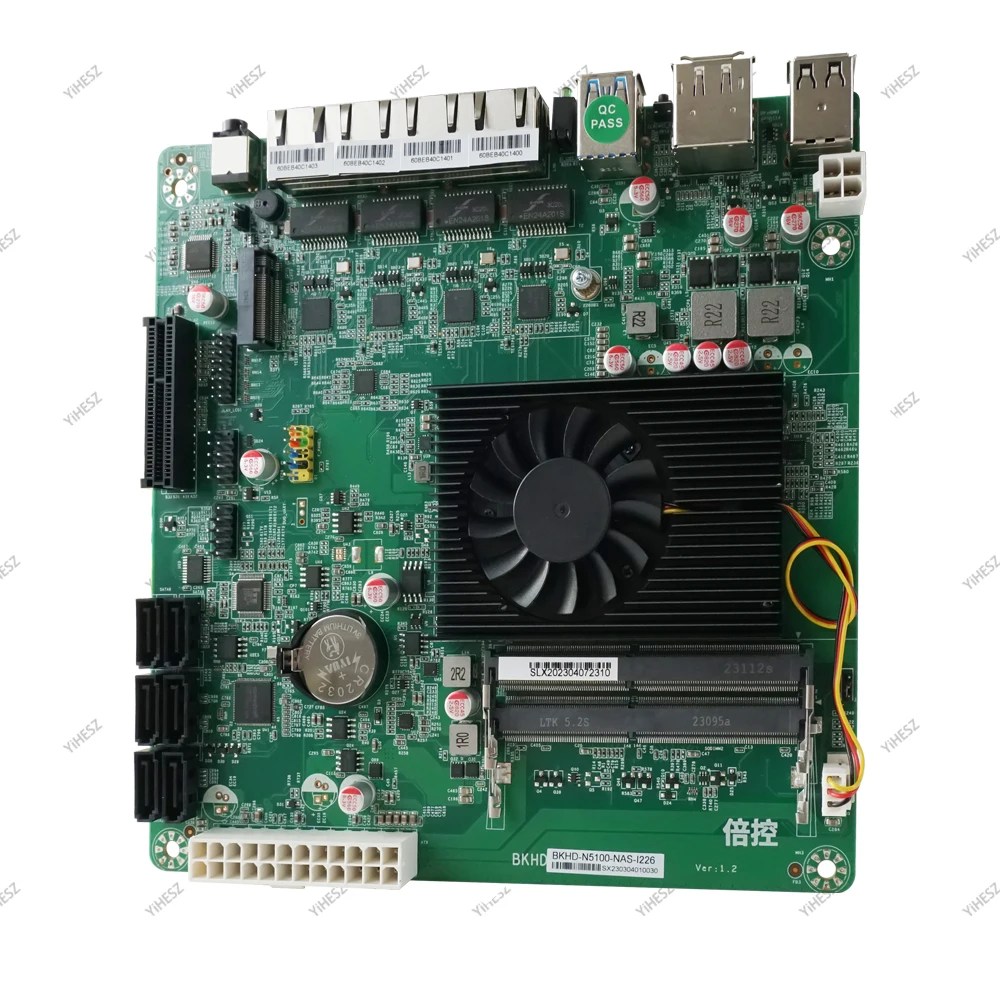

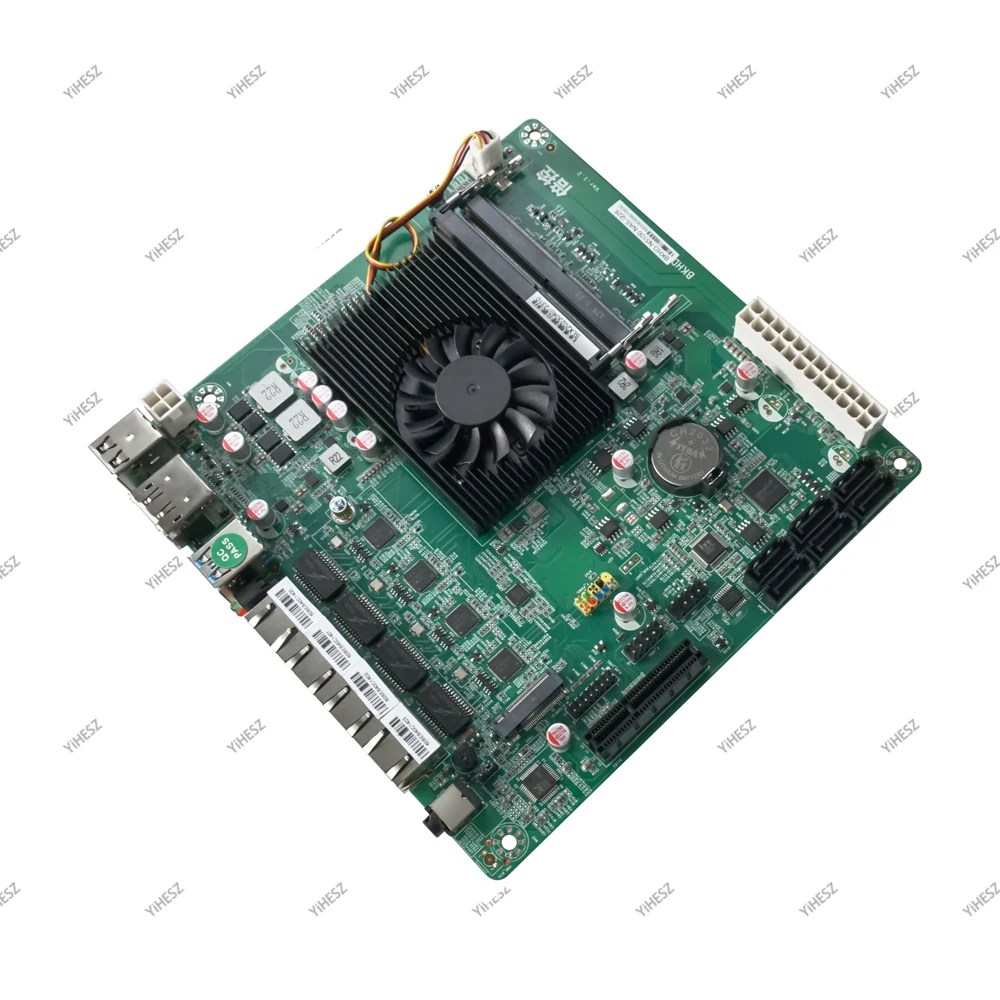

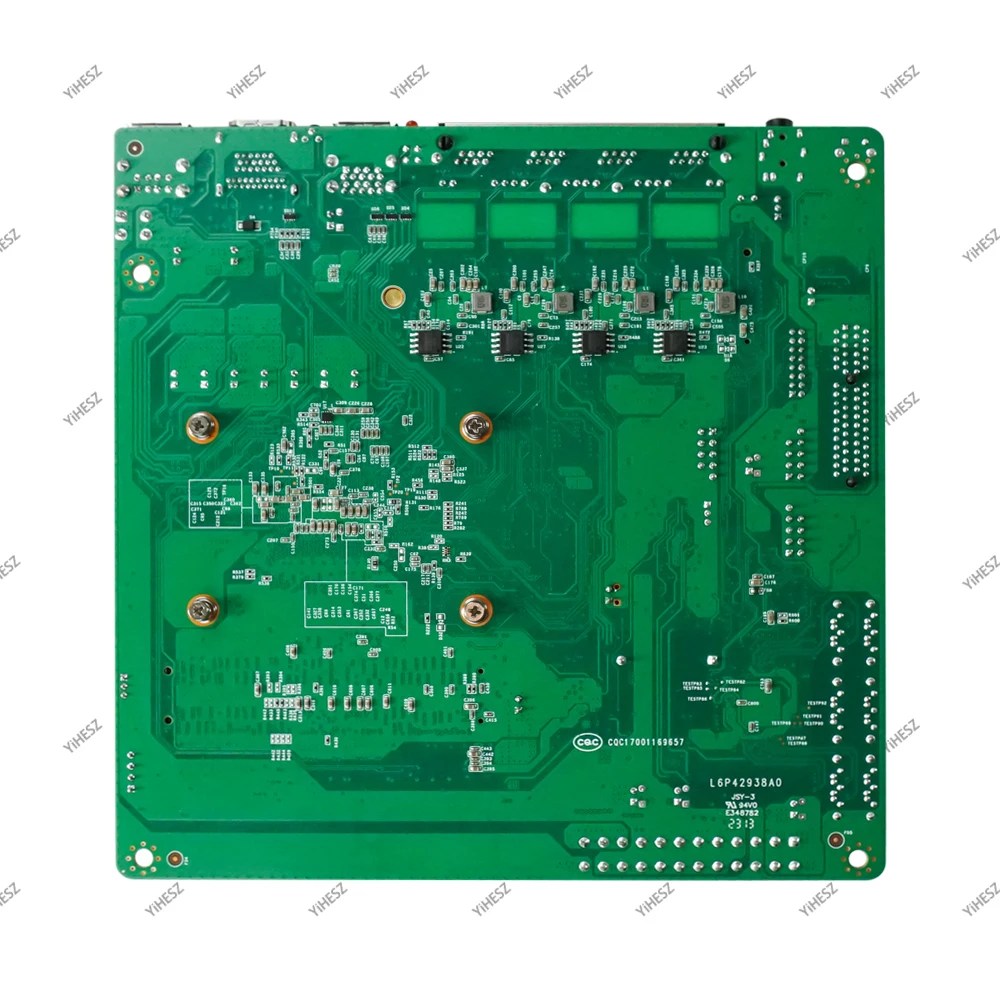

BK N5105 Quad-Core N100 Soft Routing NAS Motherboard 6 SATA Standard ITX 17CM Multi-HDD Sata 1xM.2 Dual DDR4Memory
Price range: $254.34 through $399.36
Description
SPECIFICATIONS
Application: Desktop,Server,Workstation

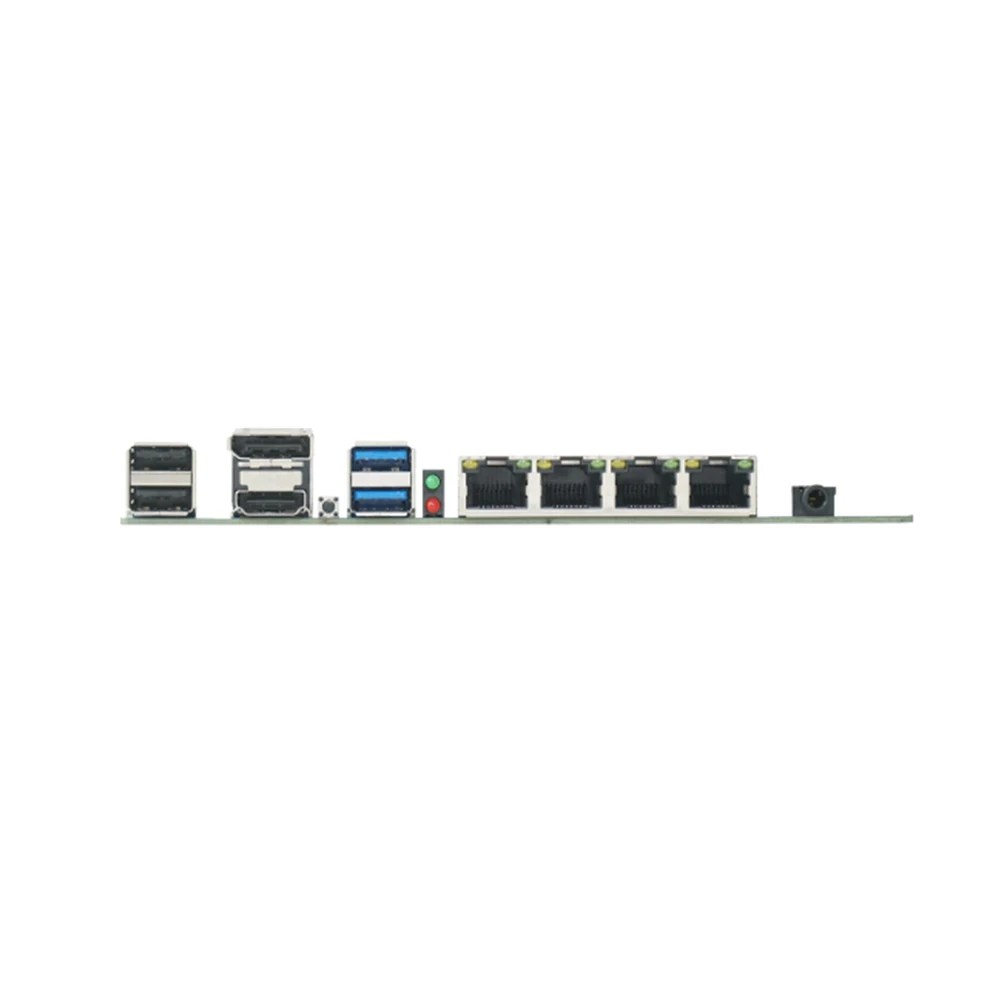

Back I/O Ports: 1x RJ45
Battery Included: no
Brand Name: YiHESZ
Chipset: Intel Others
Chipset Manufacturer: Intel
Choice: yes
High-concerned chemical: none
Material: others
Maximum Ram Capacity: 16 GB
Memory channel: Single
Number Of Memory Slots: 2
Number of M.2: 2
Number of PCI: 0
Number of PCIe x 1: 1
Number of PCIe x 4: 0
Number of PCIe x 8: 0
Number of SATA Ports: 6
Onboard Connectors & Header: 24-pin Main Power Connector,4-pin +12V Power Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI – E standards: PCI-E 3.0
Package: Yes
Processor compatibility: Intel Others
RAID Supported: no
Socket Type: Onboard CPU
Special Features: NONE
Storage Interface Type: SATA,M.2 (SATA)
Support Memory Type: DDR4
Supports M.2 SSD: 2280
Usage Scenario: Enthusiast & Overclocking,Gaming,Office,Mini PC
With CPU: Yes
[purchase notesand After-sales Service]
1.CMOS Battery Notice: To comply with intemational shiping and customs regulations (buton batteres are classifed as hazardous goods for air transport) the CR2032 CMOS battery has been removed fom the motherboard You can purchase a standard CR2032 batery localy and installit, which willnot affect themotharhoard'e fuinctinnality
2.You canalsochoose your preferred CPU and RAM combination. Simply send us the model numbers or specifications, and we will help verify compatibility before purchaseand provide you with a reasonable price.
3. Product Condition：
Motherboard: Brand New
CPU: Used
RAM: Used
Used CPUs and memory modules may have minor scratches or signs of previous use on thesurface. This is normal and does not affect functionality. If this is a concern, please consider carefully before placing an order.
4. All products are fully tested before shipment to ensure proper functionality.
Troubleshooting Reminder: Ifthe motherboard fails to boot orwork properly after receipt it may not be caused by the motherboard telf lssues can also be elated to the CPU,RAM, power supply, or other hardware compatiblity/nstalation problems Please contact our customer service first for step-by-step troubleshooting support, before opening a dispute or leaving neqative feedback
Thank you for your understanding and support.
Wish you a happy life！
Additional information
| +RAMs | DDR4-8GB-2666 X2, DDR4-8GB-2400 X2, DDR4-8GB-2666, DDR4-8GB-2400, NONE |
|---|---|
| Bundle | Motherboards |
