SPECIFICATIONS

Name: AMD B550M PC Gaming Motherboard AM4 SOYO Dual DDR4 Computer 64GB PCIE4.0x16 HDMI2.0 VGA 2*M.2 NVME SATA3.0 Kit Xeon USB3.0 HDMI
Brand: BITujjar
SKU: db9tkq7flf7000ba6ufg
Price: 130.33 USD
Availability: InStock

Application: Desktop

Back I/O Ports: 1x RJ45,VGA (D-Sub),HDMI 1.3,2x USB 3.2/3.1 Gen 1,PS/2

Battery Included: no

Brand Name: SOYO

Chipset: AMD B550

Chipset Manufacturer: AMD

Choice: yes

Crossfire: AMD Dual Graphics

High-concerned chemical: none

Material: Metal

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 1

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 3.1 /3.2 Gen 1 Connector,USB 3.0 Connector,8-pin +12V Power Connector,System Panel(s) (Chassis intrusion header is inbuilt)

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 4.0

Package: Yes

Ports: Ethernet

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 5000 Series-R7,AMD Ryzen 3000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3

RAID Supported: Yes

Socket Type: AM4

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.2 Gen2

Supports M.2 SSD: 2280

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Rendering

With CPU: No

This is our official website for you to check full product details.

https://soyosz.com/

• Dual Channel Support :Enjoy faster data transfer rates and improved system performance with the dual channel support feature.

• M.2 NVMe Support :Experience lightning-fast data transfer speeds and improved system responsiveness with the M.2 NVMe support feature.

• Crossfire Dual Graphics :Enjoy high-quality graphics and improved gaming performance with the crossfire dual graphics feature.

• DDR4 Support :Enjoy improved system stability and performance with the board's DDR4 memory support.

● Note：The CR2032battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom

Motherboard Chipset: AMD B550

CPU: Supports AMD Ryzen 3000 (excluding G-series) / 4000, 4000G-series / 5000, 5000G-series processors. Optional models include R5-3600, R5-4650G, R5-5600G, R7-5700X, R7-5700X3D, etc.

Memory: 2× DDR4 dual-channel memory, supporting frequencies of 2133/2400/2666/3000/3200/3600MHz (OC+). Supports XMP, with a maximum capacity of 64GB (32GB×2).

Storage: 2× M.2 slots (CN2: PCIe 4.0 X4 / SATA 3.0; CN3: PCIe 3.0 X4), plus 4× SATA 3.0 interfaces.

Display Interface: 1× HDMI 2.0 port, 1× VGA port.

Network: 1× RJ45 Ethernet port.

LAN Chipset: Realtek Gigabit Ethernet Controller.

PCIe Slots: 1× PCIe X16 slot (PCIe 4.0 X16), 1× PCIe X1 slot (PCIe 3.0 X1), 1× WIFI slot (PCIe protocol).

Audio: 1× Line out, 1× Mic In, 1× Line In, 1× F_Audio internal header.

Audio Chipset: Realtek ALC897 High-Definition Audio Codec.

USB Interface: I/O ports: 4× USB 3.2 Gen1 (5Gbps), 4× USB 2.0. Internal headers: 1× USB 2.0 header (supports 2 additional USB 2.0 ports), 1× USB 3.0 header (supports 2 additional USB 3.0 ports, 5Gbps).

Function Headers: 1× FPANEL front panel header, 1× 4Pin CPU fan header, 1× 4Pin + 1× 3Pin SYS fan header, 1× 4Pin Speaker header, 2× 5Pin COM headers, 2× 5Pin Debug headers, 3× 5V 3PIN ARGB headers.

Power Input: 24 Pin + 8 Pin ATX Power Connector.

Rear Interfaces

Dual USB 2.0 Ports HDMI + VGA Ports Dual USB 3.0 Ports Dual USB 3.0 Ports

Dual USB 2.0 Ports + RJ45 Gigabit Ethernet Port

Audio Input/Output Jacks

> >Product Driver Download Website: https://www.soyocn.net/down/zbdrv/AMD/

Note:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

(3) All motherboard memory processors are strictly tested before shipment.

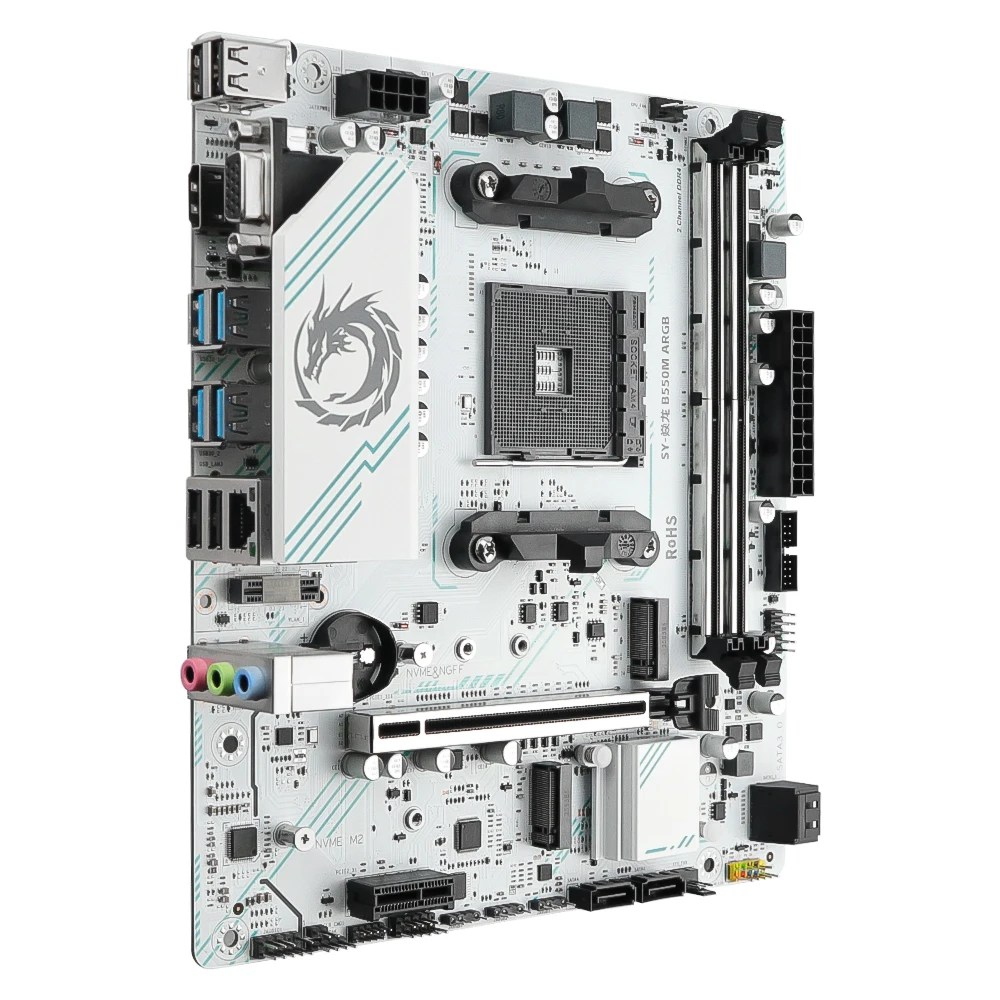

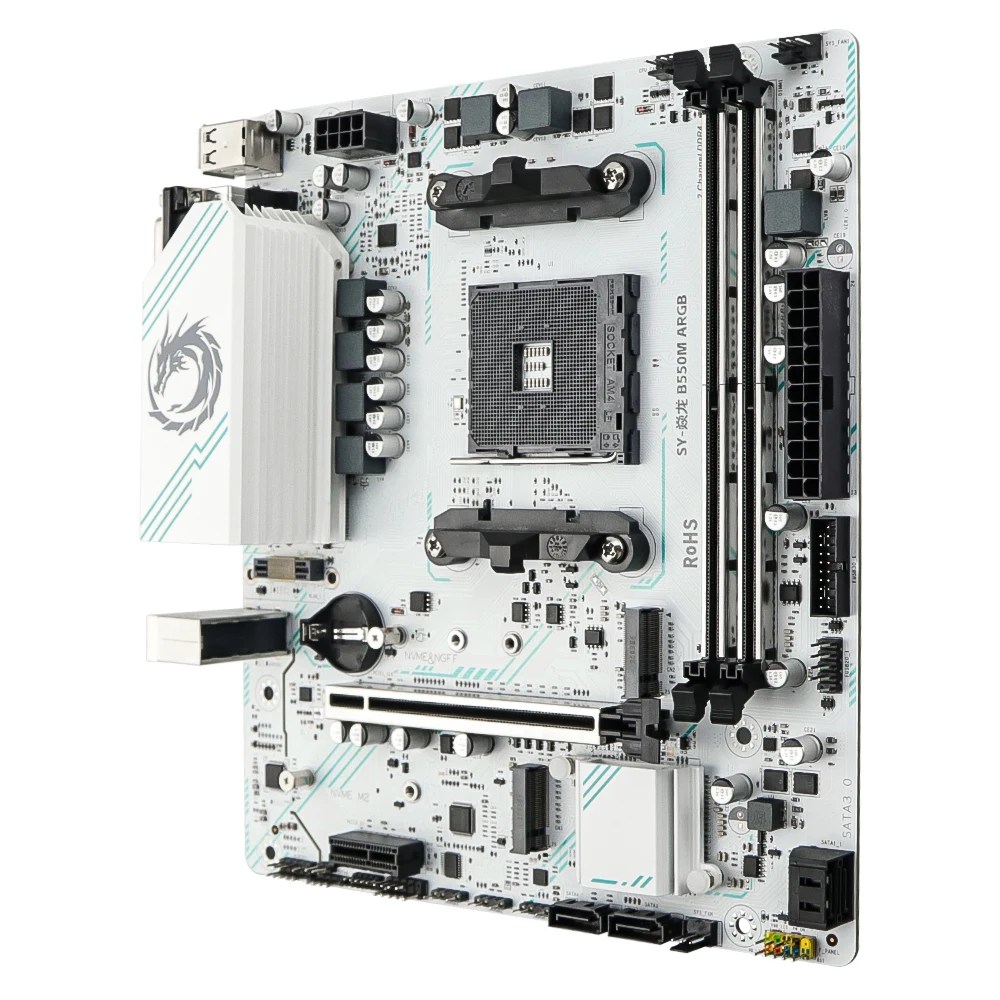

SOYO ETERNAL SY-YL B550M

AMD AM4 DDR4 MEMORY High specification, strong expansion,super single productPowerful power supply module

4+1+1-phase power supply combo

RT3667BB

Core RT3667BB Proven, stable solution delivers high-performance power to CPUs.Dual-slot, dual-channel DDR4 memory for stable operation

Dual-channel DDR4 slot design

Maximum support 3600MHz (OC+)

2 DIMM DDR4 memory slots

Supports up to 64GB total capacity

Supports dual-channel memory technology Supports 2133/2400/2666/3000/3200/3600MHz (OC+)memory frequencyRarely seen in its class with extra-specification extensions

2*M.2 interface 1*NVME/NGFF,1*NVME/SATA

1 PCIEX16 4.0 slot

Supports AMD and NVidia discrete graphics cards

1 PCIEX1 3.0 slot Supports multiple device extensions

(1)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.

(2) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
