Description

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,WiFi,COM,Displayport,HDMI 2.0

Battery Included: no

Brand Name: SOYO

Chipset: AMD B650

Chipset Manufacturer: AMD

Choice: yes

High-concerned chemical: none

Material: Metal,others

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 2

Number of PCI: 1

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,RGB Header,USB 3.0 Connector,System Panel(s) (Chassis intrusion header is inbuilt)

Onboard LAN: WIFI 6 (AX),Bluetooth v5.1

Origin: Mainland China

PCI – E standards: PCI-E 5.0

Package: Yes

Ports: Ethernet

Processor compatibility: AMD Ryzen 7000 Series-R3,AMD Ryzen 7000 Series-R5,AMD Ryzen 7000 Series-R7,AMD Ryzen 7000 Series-R9

RAID Supported: Yes

Socket Type: Socket AM5

Special Features: Cooling Armor

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5

Supports M.2 SSD: 2280

Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Rendering,MaxCompute

With CPU: No

This is our official website for you to check full product details.

https://soyosz.com/

Dual M.2 SSD Support

Faster boot times and game loads with dual M.2 slots supporting the latest NVMe SSDs up to 2280 size.

WIFI6 AX Connectivity

Stay connected with the latest WIFI6 AX technology, ensuring smooth online gaming and streaming.

Overclocking Capabilities

Designed for enthusiasts, this motherboard supports overclocking for optimal performance and stability.

AMD Ryzen AM5 Compatibility

Elevate your gaming experience with the B650ITX motherboard, designed for the latest AMD Ryzen AM5 processors.

PCIe5.0x16 & PCIe4.0x4 Slots

Unleash the full potential of your graphics card with dual PCIe 5.0×16 and PCIe 4.0×4 slots for high-speed data transfer.

> > CPU parameters:AMD AM5 Ruilong 7000/8000/9000 Series Desktop Processors

> > memory parameters:2*DDR5, supporting 4800~6000+MHz frequency (synchronous overclocking), with a maximum capacity of 64G.

> > hard disk interface:1*M.2 interface (supporting PCIE5.0 x4 speed), 1*M.2 interface (supporting PCIE4.0 x4 speed on the back), 4*SATA3.0 interface.

> > USB interface:It always supports 6*USB2.0 interface, 5*USB3.2 interface and 2*TYPC interface (up to 10gbps, transmission only).

> > display interface:1*HDMI (supporting 2.0), 1*DP (supporting 1.4)

> > expansion slot:1*PCIE-16X (supporting 5.0×16)

> > audio parameters:Realtek ALC897 series high definition audio independent sound card is adopted.

> > NIC interface:1*Realtek 8125 2.5G network card, 1*M.2 WIFI interface (pcie protocol).

> > power supply interface:1*24PIN ATXPWR 1*8PIN ATX12V

> >Product Driver Download Website: https://www.soyocn.net/down/zbdrv/AMD/

> >BIOS download URL:

https://drive.google.com/drive/folders/1_xvwV__z9j7a0jjo1as2UizRu0gHwiNX?usp=sharing

Note:
(1) Please allow 1-3mm differs due to manual measurement.
(2) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(3) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

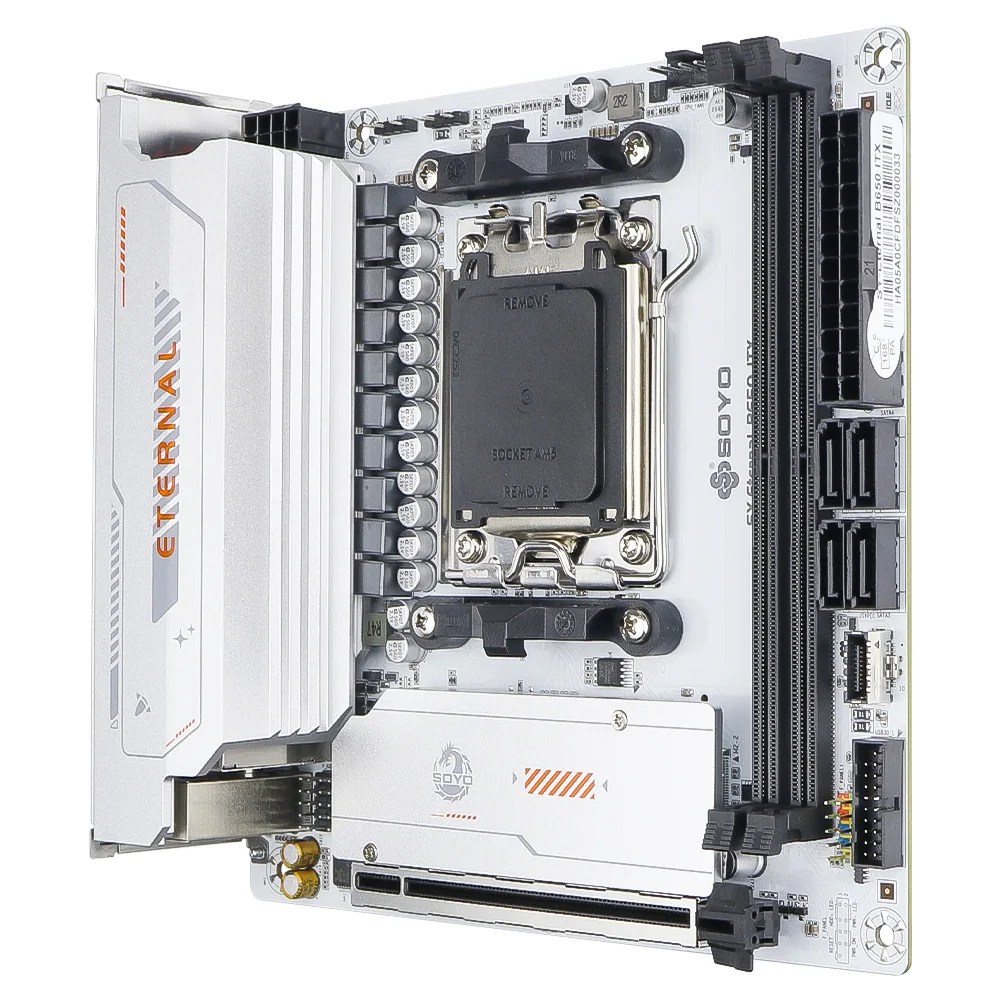

B650 ITX AMD RYZEN

Enhanced power spply

10+1 phases50A DR.MOS Fully runningR7 7800X3D

high-speed memory

2*DDR5 Support overclocking 4800/5200/5600/6000+Mhz

Hieh-speedinternet

2.5G network card&WIF16 Unlimited connec-
tion

Note:
(1) Please allow 1-3mm differs due to manual measurement.
(2) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(3) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).10+1 phasePower supply design

TDP105W(can be unlocked to 180W)Runs at full power of R77800X3D

ITX board size: 170*170mm

AMD AM5 Ryzen7000/8000/9000 Series CPU

1*PCle5.0x16 slot

The back of the M.2 interfaceM.2 supports PCle 4.0 x4 speed

Rear 2*USB2.0+HDMI/DP+2*USB3.0+USB3.2/Type-CRJ45 LAN/USB2.0+M.2 WIFI+AUDIO PORT

Front 1*F AUDIO+2*USB2.0+2*USB3.2+2*ARGB1*CPU FAN+1*SYS FAN

Realtek ALC897 sound cardRealtek 8125 2.5G network card

WIFI6 wireless network card,supports Bluetooth 5.2

DDR5 memory Dual channel 2*DIMM,supports overclocking

Supports 4800~6000+ MHz Supports a maximum capacity of 64GBThe ETERNAL series is newly launched, with a newspace-themed paint job for eSportsIt uses 10+1 phase power supply, and each core phaseis equipped with 50ADR.MOS, which can release theperformance stably, be efficient and powerful, and beextremely competitive!Equipped with 2*DIMM high-speed DDR5 memory slots, supports du-al-channel memory technology, supports memory4800/5200/5600/6000+Mhz, and has a faster response speed, making iteasy to take the initiative on the battlefield!

*Data source: SOYO Lab, achieved with Ryzen9000 series processors. Overclocking effect depends onmany factors, please refer to the actual effect.1 x M.2 Interface (supports PCle 5.0 x4 speed),1 x M.2 Interface (supports PCle4.0 x4 speed on the back) Full-speed interface, Supports NVMe hard drivesTYPE-C Transmission High Speed Peripheral Connection

Type-E Slot Supports The ExpanslonOf One 5Gbps Type-C InterfaceEquipped With a Realtek 8125 2.5G Wired Network Card, En-abling instant internet access, reducing game latency For Moretimely operations; meanwhile, it is also equipped with a RealtekRTL8852BE WiFi 6 dual-band (2.4GHz/5GHz) wireless networkcard, supporting Bluetooth 5.2. This delivers faster and morestable WiFi 6 for seamless wireless connectivity.
